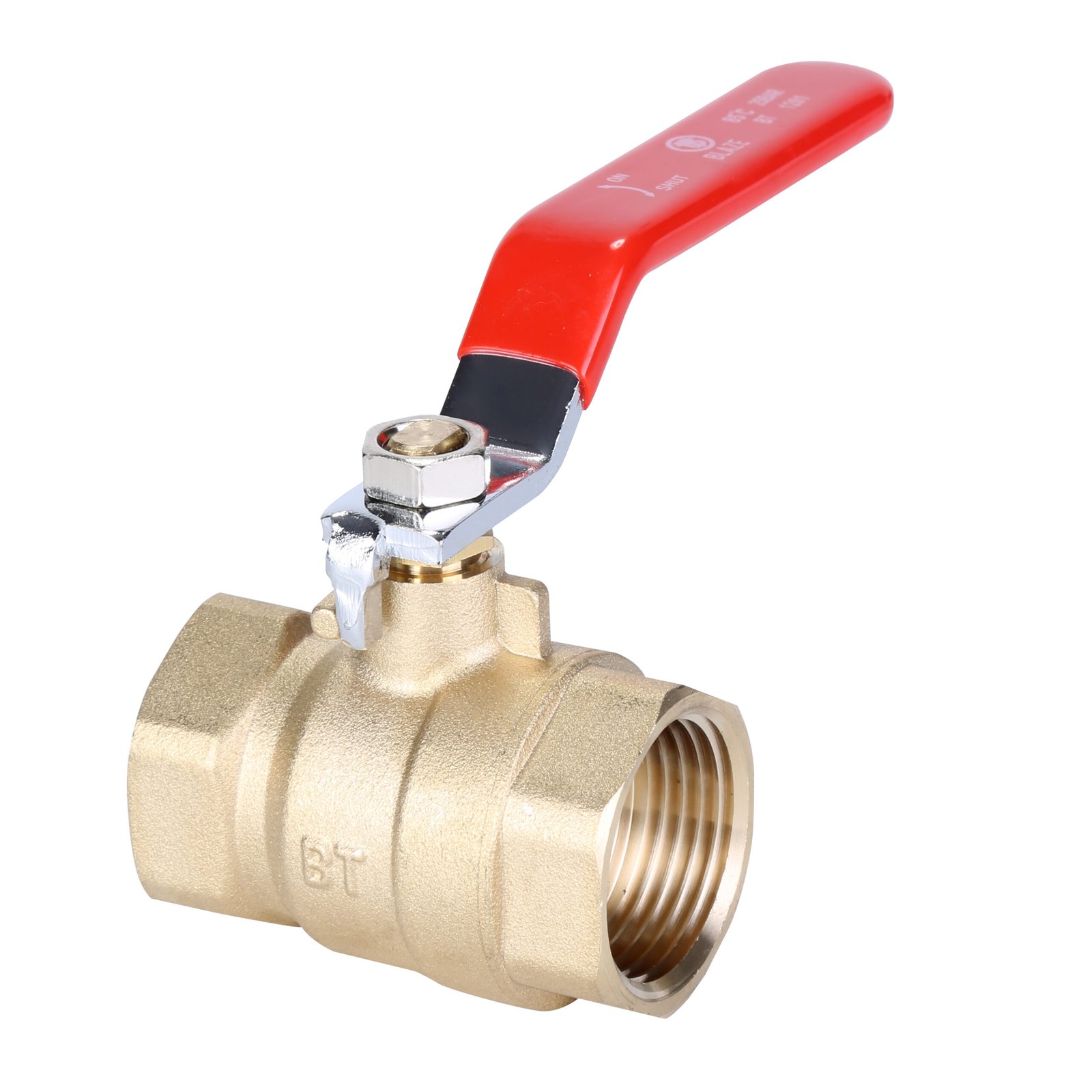

Brass Ball Valve PN 25
The BT-1201 Brass Ball Valve is a high-performance valve designed for dependable shut-off in a wide range of applications. Built to handle PN 25 pressure, it supports water, oil, and gas mediums with a maximum working temperature of 170°C. Featuring BSPT threads in accordance with EN 10226-1 / ISO 7, this valve ensures a secure and reliable connection. Available in sizes from 1/2″ to 4″ (DN15-DN100), the BT-1201 is suitable for residential, commercial, and industrial systems where durability and precision control are essential
| DN | INCH | L ±1 | L1 | L2 ±1 | ØD | H ±1 | A |
|---|---|---|---|---|---|---|---|
| 15 | 1/2" | 60 | 16.8 | 92 | 14 | 45 | 31 |
| 20 | 3/4" | 67 | 17.7 | 92 | 19 | 50 | 37 |
| 25 | 1" | 76 | 19.5 | 105 | 24 | 56 | 45 |
| 32 | 1-1/4" | 93 | 22.7 | 134 | 32 | 73 | 58 |
| 40 | 1-1/2" | 101 | 22.7 | 134 | 40 | 78 | 70 |
| 50 | 2" | 122 | 27.3 | 144 | 49 | 93 | 84 |
| 65 | 2-1/2" | 132 | 25 | 222 | 62 | 127 | 103 |
| 80 | 3" | 157 | 30 | 222 | 74 | 135 | 123 |
| 100 | 4" | 184.5 | 32 | 277 | 95 | 146.7 | 154 |
- Residential and commercial plumbing systems
- Water supply and distribution networks
- Oil and gas pipelines
- HVAC systems
- Industrial process control
- Irrigation systems
Description
- Heavy-duty brass construction
- High working pressure: PN 25
- Suitable for water, oil, and gas
- Max temperature: <170°C
- BSPT threads (EN 10226-1 / ISO 7)
- Full bore for unrestricted flow
- Size range: 1½” to 4″ (DN15-DN100)
- Smooth quarter-turn operation
Additional information
| Working Pressure | PN25 |
|---|---|
| Medium | Water, Oil & Gas |
| Max temperature | <170°C |
| Body Material | DZR Brass |
| Model Number | BT 1201 |
| Size Range | ½” to 4” (DN15–DN100) |
