Brass Bibcock
The Blaze BT 1211 Brass Bibcock is a high-quality, manually operated faucet valve designed for reliable control of water flow in residential, commercial, and light industrial applications. Built from durable brass and equipped with ISO 7 threaded connections, this bibcock provides dependable performance under a pressure rating of PN16 and across a wide temperature range of 10°C to 110°C. Its simple design allows for easy installation and maintenance in a variety of plumbing systems.

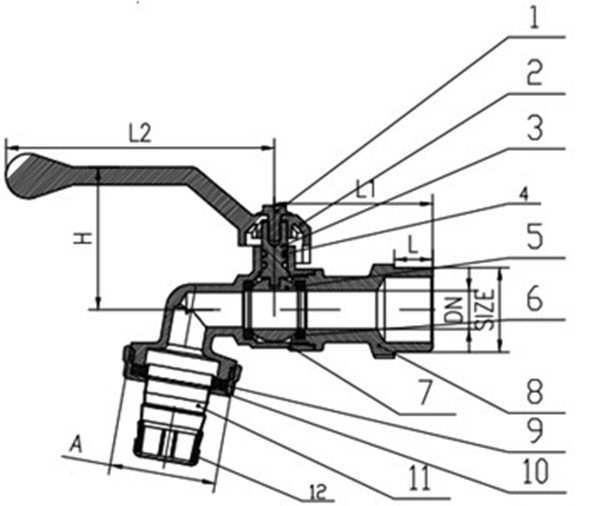

| DN | INCH | DN | L | L1 | L2 | H | zA |
|---|---|---|---|---|---|---|---|
| 15 | ½" | ø11 | 12 | 50 | 84 | 44.5 | G3/4" |
| 20 | ¾" | ø12 | 12 | 50 | 84 | 44.5 | G1" |
| 25 | 1" | ø13.5 | 12 | 50 | 97.5 | 49.5 | G1-1/4" |
- Residential water supply outlets
- Garden and outdoor hose connections
- Commercial and utility washdown points
- Building service rooms and maintenance areas
- Industrial sink or basin tap-off points
- Temporary water dispensing stations
Description
- Solid brass construction for durability and corrosion resistance
- Manual on/off control with easy-to-grip handle
- Rated for high pressure: PN16
- Wide operating temperature range: 10°C to 110°C
- BSPT threaded ends conforming to ISO 7 standard
- Suitable for indoor and outdoor water supply systems
- Easy to install and service
- Ideal for use with hose connections or as a wall-mounted tap
Additional information
| Working Pressure | PN16 |
|---|---|
| Medium | Water |
| Working temperature | 10°C to 110°C |
| Body Material | Brass |
| Model Number | BT 1211 |
| Pipe Thread | ISO 7 (BSPT – British |
| Operation | Manual (quarter-turn |
