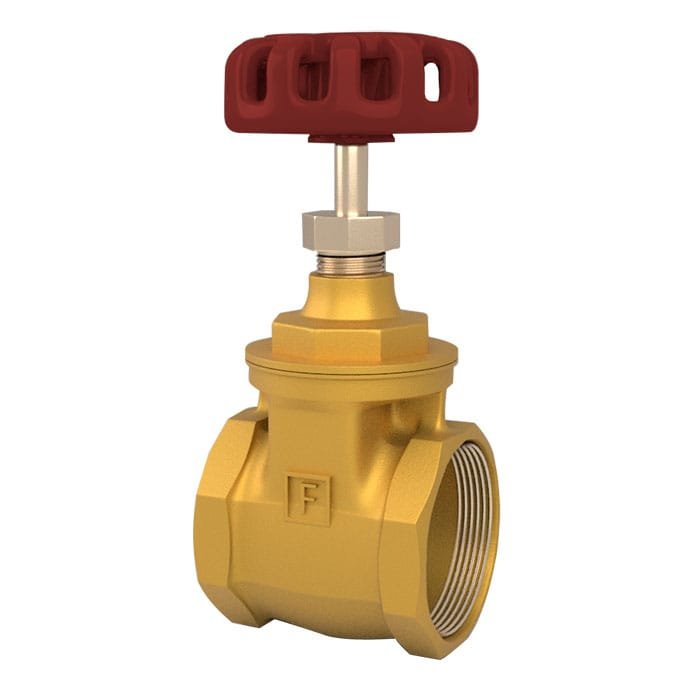

Brass Gate Valve – PN 16
The BLAZE BT 1203 is a high-quality brass gate valve designed for reliable flow control in a variety of systems. Suitable for use with water, oil, and gas, it operates under a maximum working pressure of PN 16 and a temperature of up to 170°C. This valve features BSPT threading as per ISO 07 standards and is available in sizes ranging from 1/2″ to 4″ (DN15-DN100). Its WRAS approval ensures compliance with international standards for potable water systems. Engineered for durability and long-term performance, the BT 1203 is ideal for residential, commercial, and industrial applications.

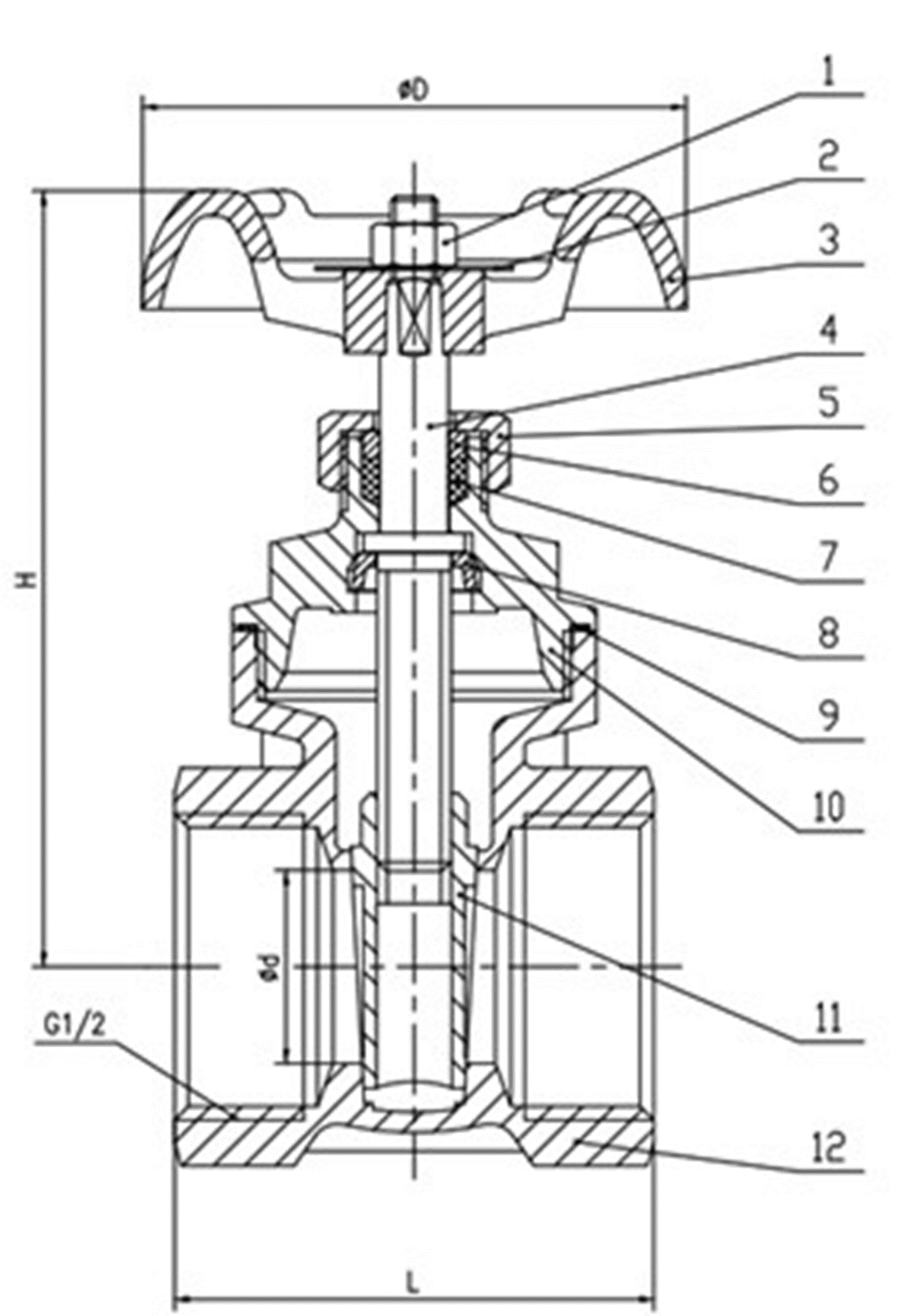

| DN | INCH | L | D | H | d |
|---|---|---|---|---|---|
| 15 | 1/2" | 45 | 53 | 70 | 12.8 |
| 20 | 3/4" | 48 | 53 | 77 | 19 |
| 25 | 1" | 54 | 53 | 85 | 22 |
| 32 | 1 1/4" | 59 | 59 | 103 | 29 |
| 40 | 1 1/2" | 61 | 71 | 117 | 36 |
| 50 | 2" | 70 | 78 | 138 | 46.5 |
| 65 | 2 1/2" | 82 | 97 | 170 | 57 |
| 80 | 3" | 84 | 108 | 198 | 69 |
| 100 | 4" | 102 | 126 | 235 | 90 |
- Residential and commercial plumbing
- Water supply and distribution systems
- Oil and gas pipelines
- HVAC systems
- Industrial fluid control
- Potable water systems (WRAS approved)
Description
- Durable brass construction
- PN 16 working pressure
- Suitable for water, oil, and gas
- Max temperature: 170°C
- BSPT threaded ends (ISO 07)
- WRAS approved
- Sizes: 1½” to 4″ (DN15-DN100)
Additional information
| Working Pressure | PN16 |
|---|---|
| Medium | Water, Oil & Gas |
| Max temperature | 170°C |
| Model Number | BT 1203 |
| Size Range | 1½" to 4" (DN15-DN100) |
