Brass Globe Valve

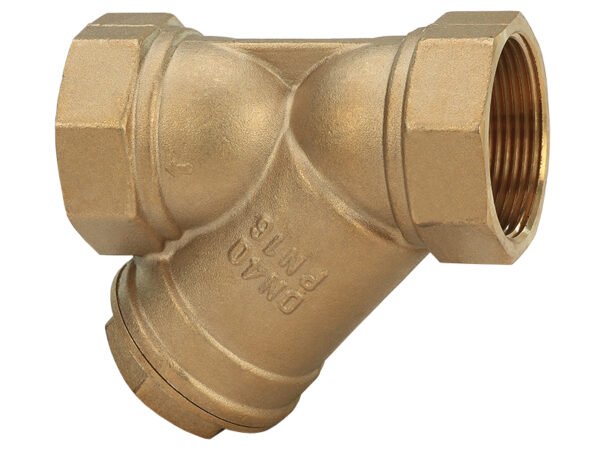

The Blaze BT 1207 Brass Strainer is designed to protect valves, meters, and other components in piping systems by effectively filtering out debris and solid particles. Manufactured from high-quality brass, it is suitable for use with water, oil, and gas in residential, commercial, and industrial applications. The strainer operates reliably under a working pressure of PN 20 and temperatures up to 170°C, ensuring long-lasting performance even under demanding conditions.

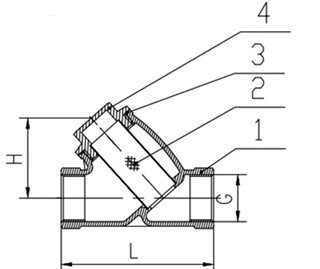

| DN | INCH | H | L |
|---|---|---|---|
| 15 | ½" | 40 | 74 |
| 20 | ¾" | 45 | 86.5 |
| 25 | 1" | 64 | 108 |
| 32 | 1¼" | 71 | 122 |
| 40 | 1½" | 81 | 135 |
| 50 | 2" | 96 | 163 |
| 65 | 2½" | 110 | 226 |
| 80 | 3" | 142 | 255 |
| 100 | 4" | 175 | 327 |
- Water supply systems
- Oil circulation and lubrication systems
- Gas distribution and control systems
- HVAC and mechanical piping networks
- Pump and valve protection
- Residential, commercial, and light industrial plumbing
Description
- Durable brass body for corrosion resistance and longevity
- Efficient filtration to prevent damage to downstream equipment
- High working pressure rating: PN 20
- Suitable for water, oil, and gas applications
- Easy-to-clean screen design
- Compact, threaded-end construction for easy installation
- Pipe connections compatible with ISO 7 thread standard
- Withstands temperatures up to 170°C
Additional information
| Working Pressure | PN20 |
|---|---|
| Medium | Water, Oil & Gas |
| Worling temperature | <170°C |
| Pipe Thread | ISO 7 (BSPT – British Standard Pipe Taper) |
| Model Number | BT 1207 |
| Product Type | Brass Y-Strainer |
| Installation Orientation | Horizontal or vertical, depending on system design |
