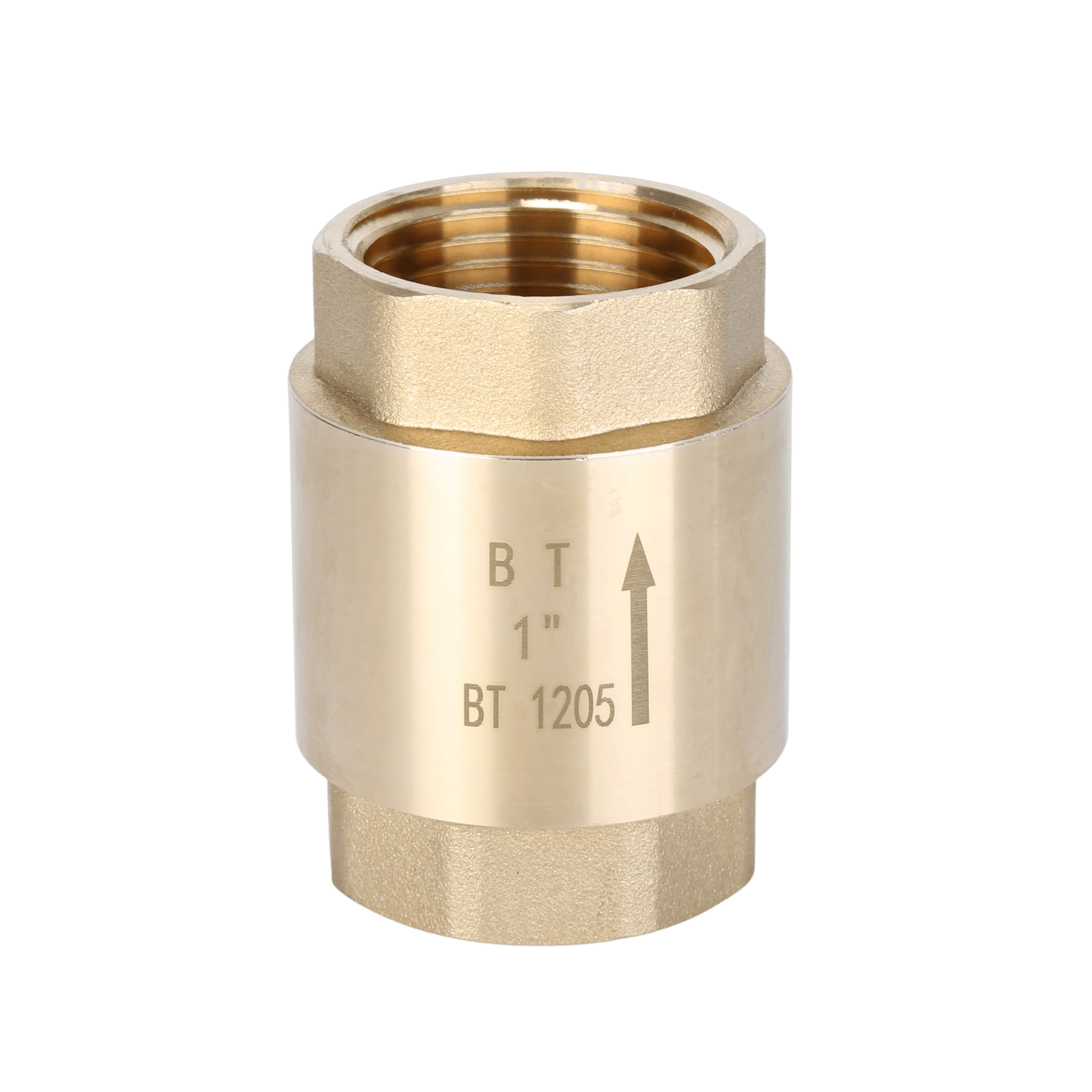

Brass Vertical Check Valve
The Blaze BT 1205 Brass Vertical Check Valve is a compact, high-performance valve designed to allow unidirectional flow and prevent reverse flow in piping systems. Constructed from durable brass and suitable for vertical installation, it operates automatically without the need for external actuation. Engineered for use with water, oil, and steam, the valve performs reliably under working pressures up to PN 10 and temperatures up to 110°C, making it ideal for residential, commercial, and light industrial systems.

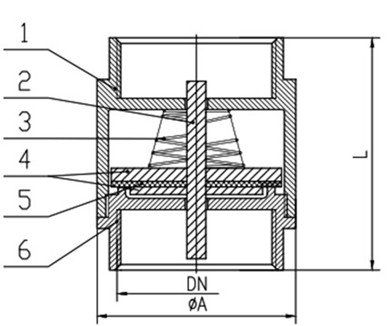

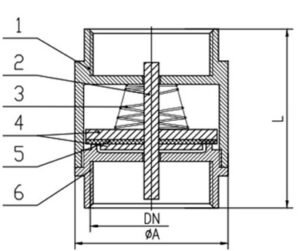

| DN | INCH | A | L | w | Wt(KG) |
|---|---|---|---|---|---|
| 15 | ½" | 33±1 | 46.5±1 | 25±1 | 0.135 |
| 20 | ¾" | 42±1 | 56.5±1 | 31±1 | 0.23 |
| 25 | 1" | 46±1 | 60.5±1 | 38±1 | 0.3 |
| 32 | 1¼" | 59±1 | 61.5±1 | 47±1 | 0.47 |
| 40 | 1½" | 66±1 | 67.5±1 | 52.5±1 | 0.63 |
| 50 | 2" | 80±1 | 85.5±1 | 67±1 | 1 |
| 65 | 2½" | 95±1 | 92.5±1 | 82±1 | 1.9 |
| 80 | 3" | 110±1 | 97.5±1 | 95±1 | 2.5 |
| 100 | 4" | 145±1 | 110.5±1 | 121±1 | 3.9 |
Description
- Durable brass construction for corrosion resistance and long service life
- Vertical installation design for space-saving configurations
- Prevents reverse flow automatically
- BSPT threaded ends compliant with EN 10226-1 / ISO 7
- Suitable for water, oil, and steam applications
- Compact and easy to install
- Operates at temperatures up to 110°C
- Maintenance-free operation
Additional information
| Working Pressure | PN10 |
|---|---|
| Medium | Water, Oil & Steam |
| Working Temperature | < 110°C |
| Pipe Thread | BSPT : EN 10226-1 / ISO 7 |
| Model Number | BT 1205 |
| Installation Orientation | Vertical |
