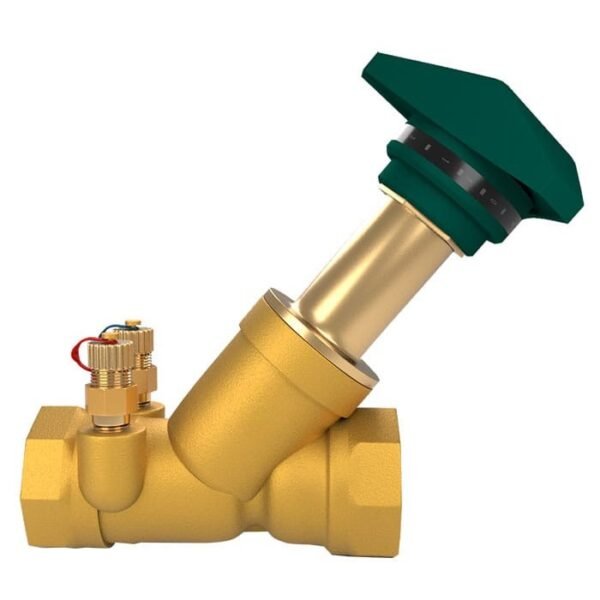

Bronze Fixed orifice Double Regulating Valve
The BLAZE BT 1314 is a bronze double regulating valve with a fixed orifice, designed for accurate flow balancing in HVAC and water systems. Suitable for chilled, hot, and potable water applications, it supports pressures up to PN 25 and temperatures below 120°C.

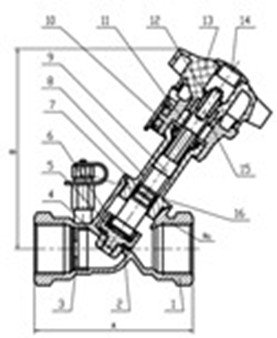

| DN | INCH | A | B |
|---|---|---|---|
| 15 | ½” | 87 | 105 |
| 20 | ¾” | 96 | 106 |
| 25 | 1” | 100 | 127 |
| 32 | 11/4” | 93 | 128 |
| 40 | 11/2” | 125 | 143 |
| 50 | 2” | 146 | 144 |
- HVAC systems (chilled/hot water)
- Potable water systems
- District cooling and heating
- Commercial and industrial installations
Description
- Bronze body construction
- Fixed orifice for flow measurement
- Double regulating function
- PN 25 pressure rating
- Max temperature <120°C
- BSPT threads (EN 10226-1 / ISO 7)
- WRAS approved
- Sizes: 12″-2″ (DN15-DN50)
Additional information
| Pressure Rating | PN 25 |
|---|---|
| Medium | Water, Oil, Steam (incl. potable) |
| Max temperature | <120°C |
| Model Number | BT 1314 |
| Size Range | ½”–2” (DN15–DN50) |
| Material | Bronze |
| Connection | BSPT (EN 10226-1 / ISO 7 |
| Certification | WRAS Approved |
