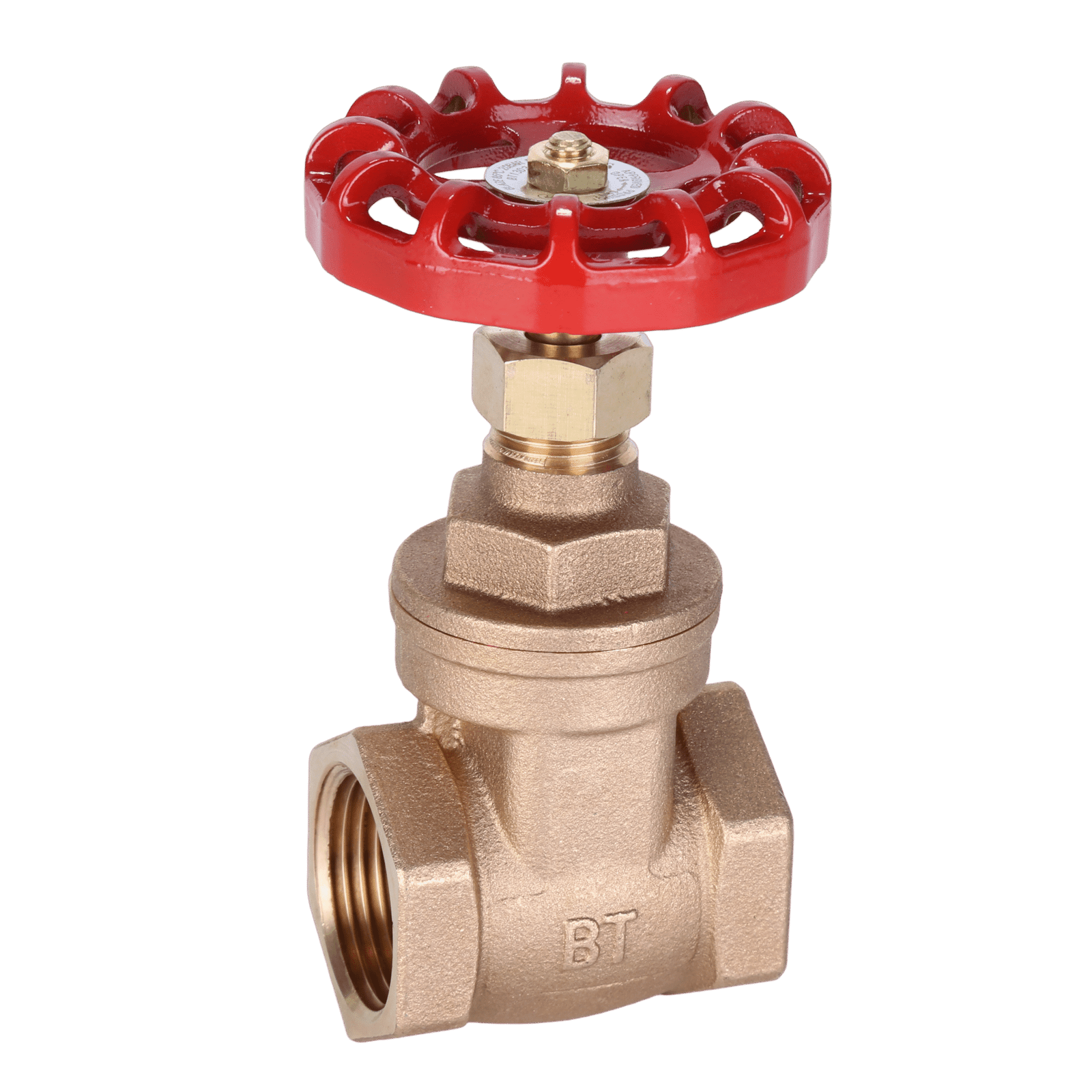

Bronze Gate Valve
The BLAZE BT-1310 Bronze Gate Valve is designed for reliable shut-off control in water, oil, and steam systems. Built to withstand high pressure and temperature conditions, it features ISO 7 threaded ends and complies with BS5154 and MSS SP-80 standards, ensuring durability and performance in demanding applications.

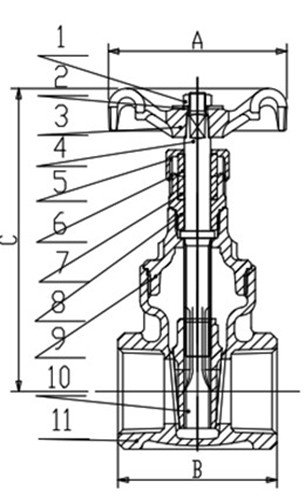

| SIZE | A | B | C |
|---|---|---|---|
| 1/4” | 45 | 46 | 75 |
| 3/8” | 45 | 46 | 75 |
| 1/2” | 52 | 51 | 82 |
| 3/4” | 65 | 55 | 95 |
| 1” | 70 | 63 | 118 |
| 11/4” | 79 | 71 | 144 |
| 11/2” | 92 | 73 | 166 |
| 2” | 103 | 83 | 190 |
| 21/2” | 134 | 108 | 235 |
| 3” | 134 | 117 | 251 |
- Plumbing and piping systems
- Industrial fluid control
- Steam lines and HVAC systems
- Oil distribution systems
- General-purpose shut-off in commercial & residential settings
Description
- High-performance bronze body
- Suitable for water, oil, and steam
- Rated for high pressure: PN 25
- Operates at temperatures up to 170°C
- ISO 7 threaded ends for easy installation
- Complies with BS5154 / MSS SP-80 standards
- Available in sizes from 1½” to 3″
Additional information
| Normal Pressure | PN 25 |
|---|---|
| Medium | Water, Oil, Steam |
| Working temperature | <170°C |
| Model Number | BT 1310 |
| Size Range | ¼” – 3” (DN8 – DN80) |
| Material | Bronze |
| Thread Standard | ISO 7 |
| Standards | BS5154 / MSS SP-80 |
