Bronze Pressure Reducing Valve
The BLAZE BT-1308-A is a robust, high-capacity bronze pressure reducing valve designed for larger pipeline systems. Ideal for water and gas applications, it maintains consistent outlet pressure and is WRAS approved for potable use.

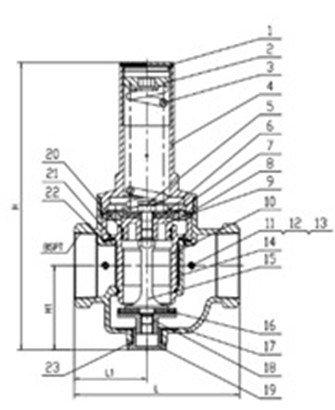

| DN | INCH | H1 | H | L1 | L |
|---|---|---|---|---|---|
| 32 | 1¼" | 62 | 192 | 55.5 | 126 |
| 40 | 1½" | 62 | 192 | 55.5 | 126 |
| 50 | 2" | 85 | 272 | 72 | 168 |
| 65 | 2½" | 85 | 272 | 75.5 | 174 |
| 80 | 3" | 113 | 385 | 98.5 | 225 |
| 100 | 4" | 113 | 385 | 104.5 | 230 |
Description
- Heavy-duty bronze construction
- For water and gas systems
- Adjustable outlet pressure: 0.1 – 0.5 MPa High temperature resistance: up to 70 deg * C
- ISO 7 threaded connections
- Certified by WRAS
Additional information
| Pressure Rating | PN 20 |
|---|---|
| Outlet Pressure | 0.1 – 0.4 MPa |
| Working temperature | <170°C |
| Model Number | BT 1308-A |
| Size Range | 1¼” – 4” (DN32 – DN100) |
| Material | Bronze |
| Thread Standard | ISO 7 |
| Certification | WRAS Approved |
