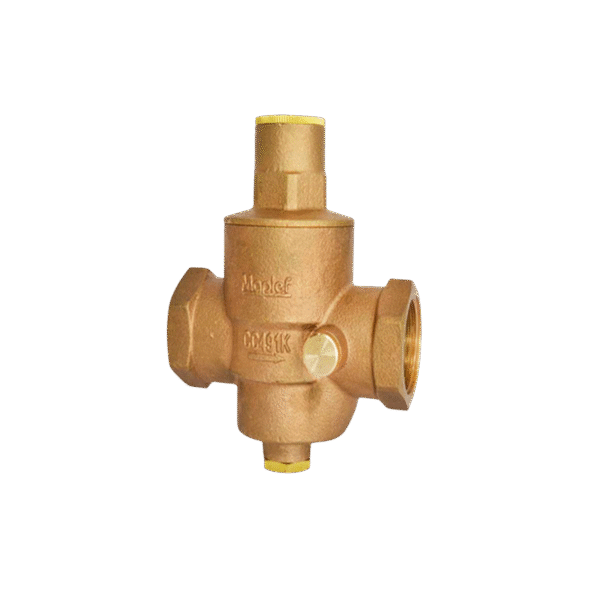

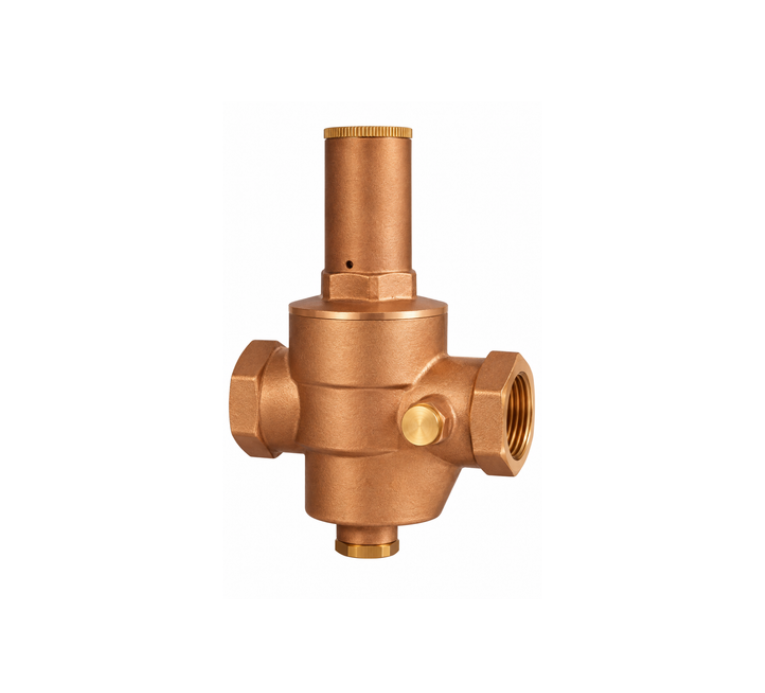

Bronze Pressure Reducing Valve
The BLAZE BT-1308 is a compact, high-performance bronze pressure reducing valve designed for water and gas systems. It ensures stable outlet pressure and reliable operation in residential and commercial installations.

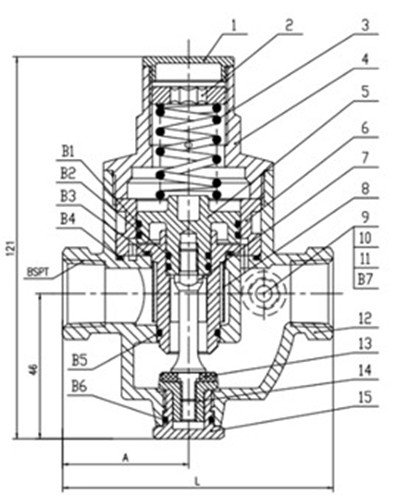

| DN | INCH | L | L1 |
|---|---|---|---|
| 15 | ½” | 89 | 41.5 |
| 20 | ¾” | 92 | 43 |
| 25 | 1” | 98 | 46 |
Description
- Durable bronze construction
- Adjustable outlet pressure (0.1 – 0.4 MPa)
- WRAS approved for potable water
- Works with water and gas
- High temperature resistance (<170°C)
- ISO 7 threaded connections
Additional information
| Pressure Rating | PN 20 |
|---|---|
| Outlet Pressure | 0.1 – 0.4 MPa |
| Working temperature | <70°C |
| Model Number | BT 1308 |
| Size Range | ½” – 1” (DN15 – DN25) |
| Material | Bronze |
| Thread Standard | ISO 7 |
| Certification | WRAS Approved |
