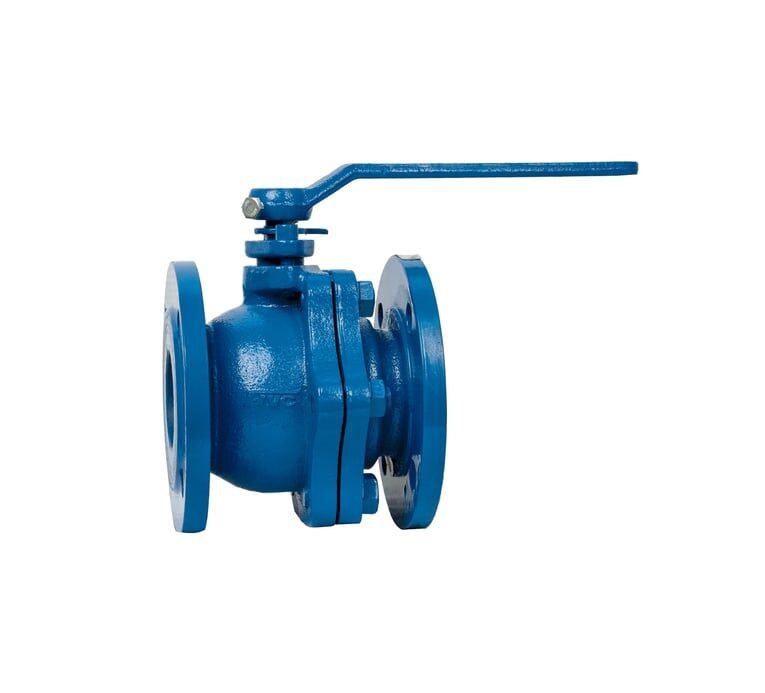

Cast Iron Ball Valve
Valve Standard
- Comply with MSS SP-72
- Face-to-face Dimension Conforms to
BS EN558-1 Series 14 (DIN 3202 F4) for DN50-DN100 BS EN558-1 Series 15 DIN 3202 F5) for DN125-DN200 - PN16 Flanged ends, compliant with EN 1092-2

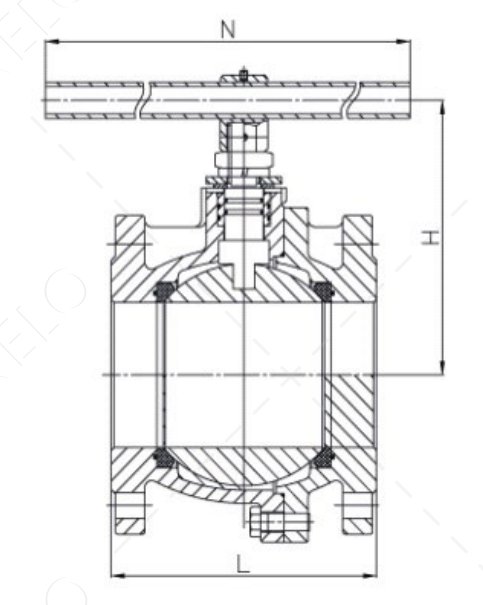

| DN(mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | - |
|---|---|---|---|---|---|---|---|---|
| DN(inch) | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | - |
| L | 150 | 170 | 180 | 190 | 325 | 350 | 400 | - |
| H | 115 | 130 | 140 | 155 | 195 | 240 | 325 | - |
| N | 220 | 284 | 284 | 500 | 600 | 800 | 1000 | - |
Additional information
| Working Pressure | 16 bar |
|---|---|
| Testing Pressure | shell: 24bar |
| Working Temperature | -10°C to 120°C |
| Model Number | BT 1430 |
