Double Door Wafer Check Valve -PN 16

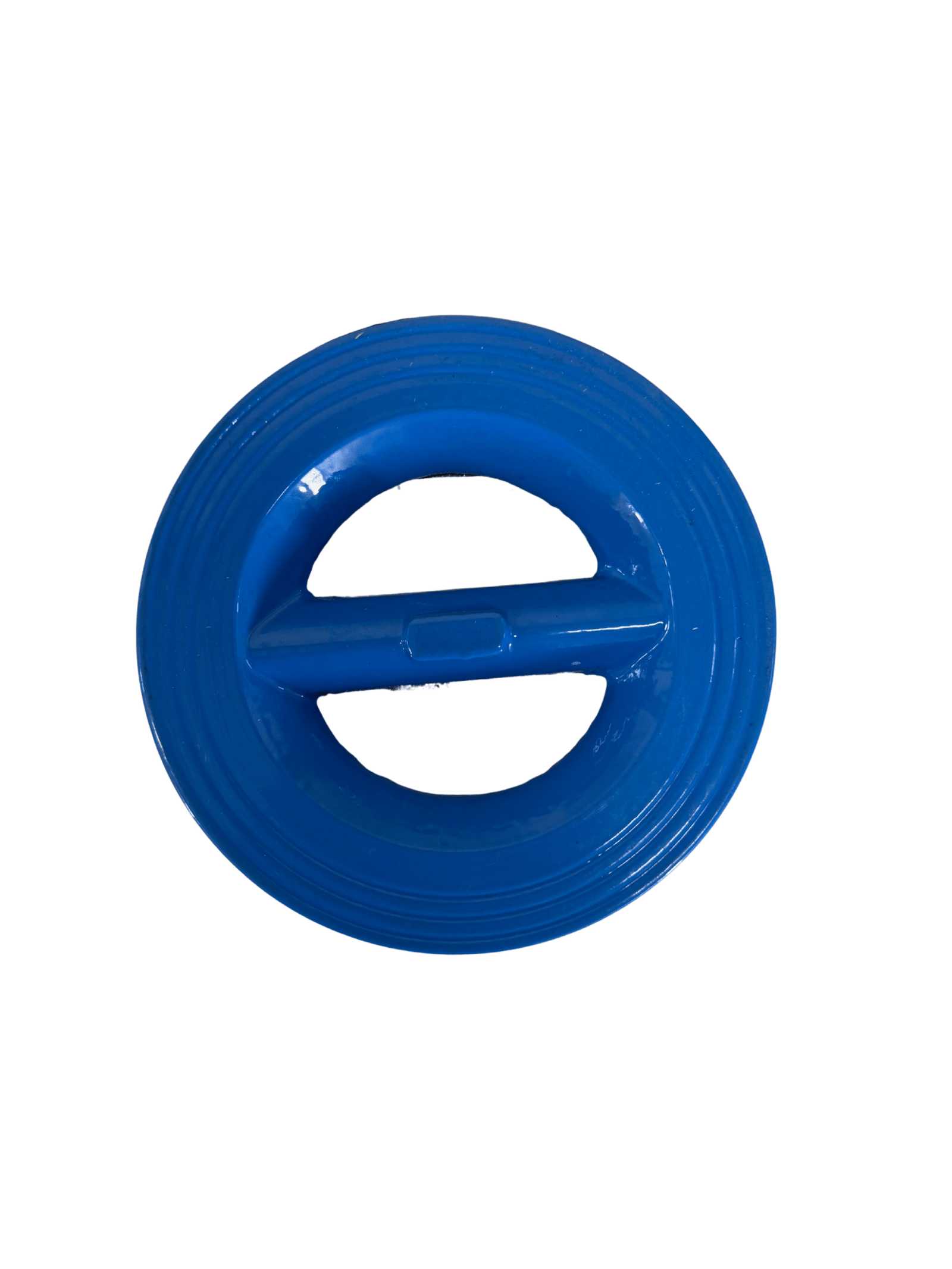

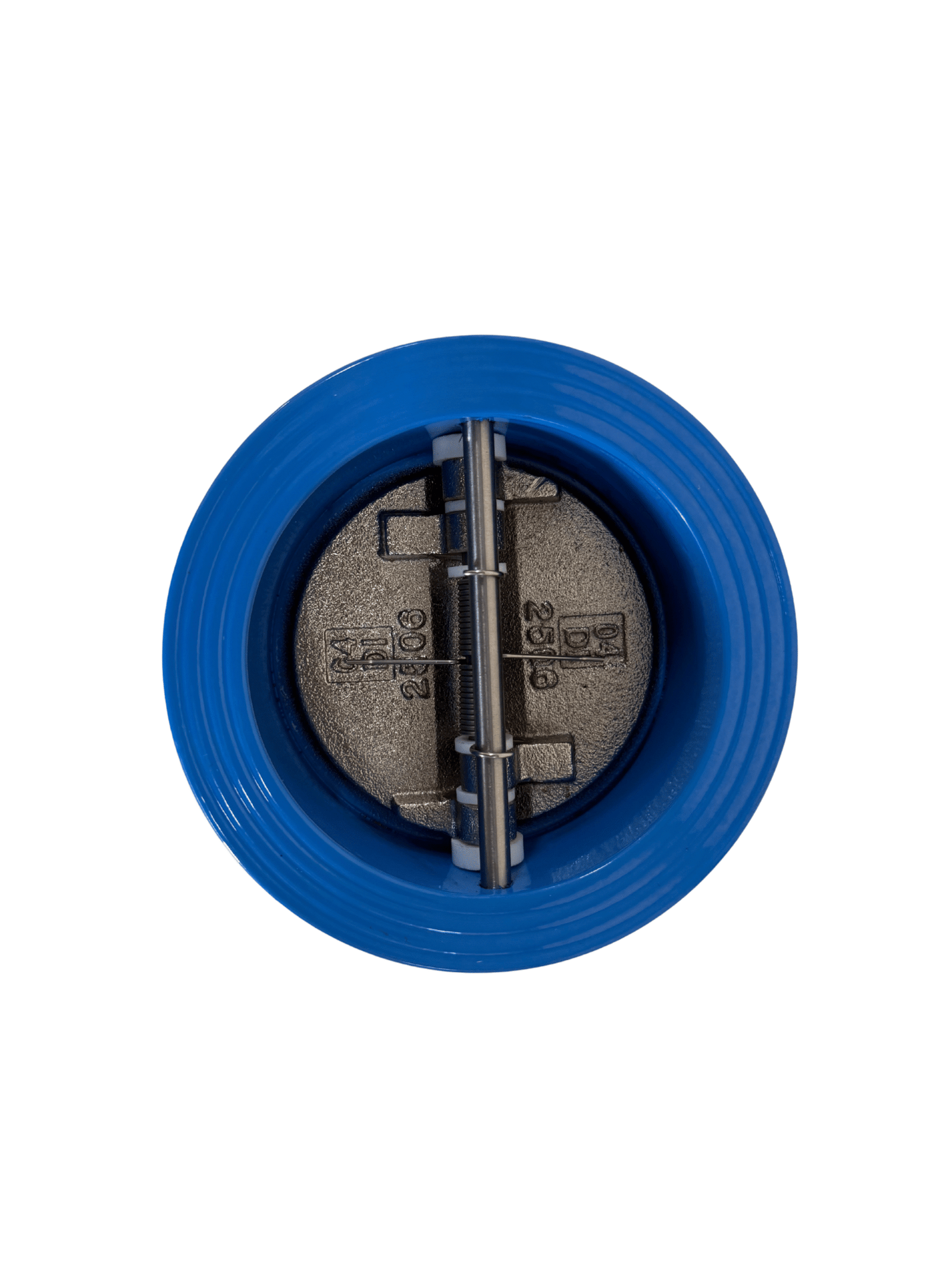

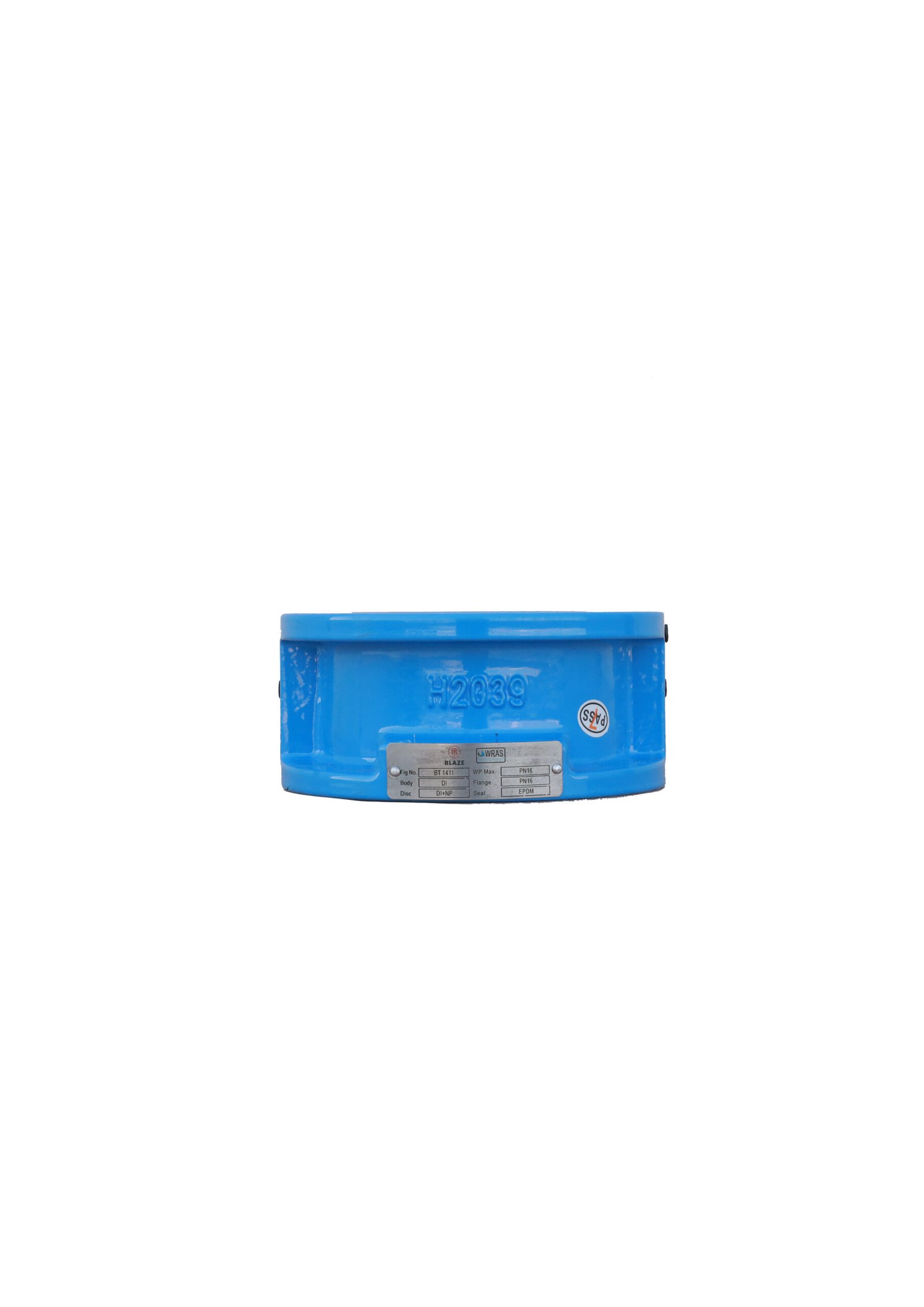

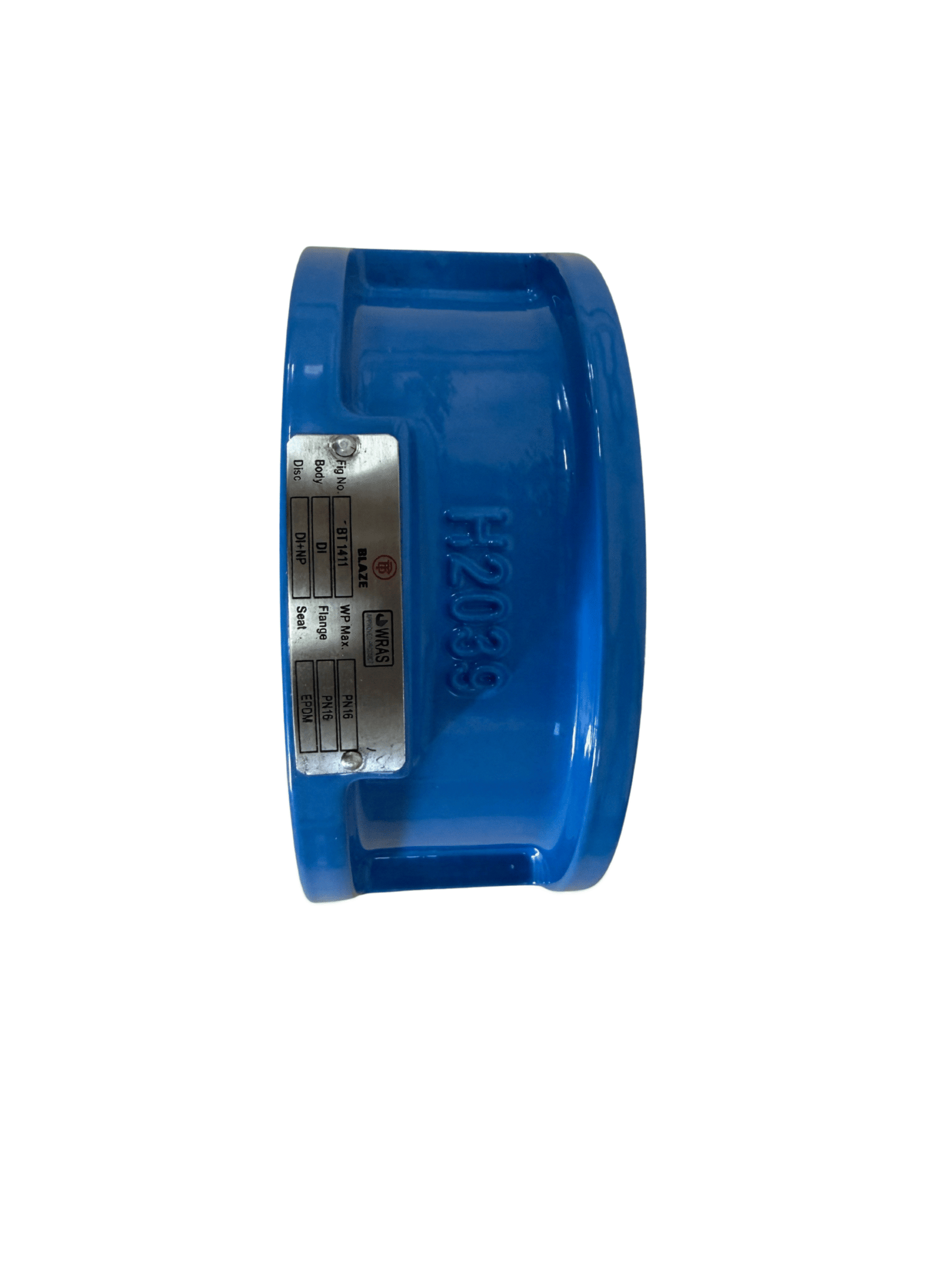

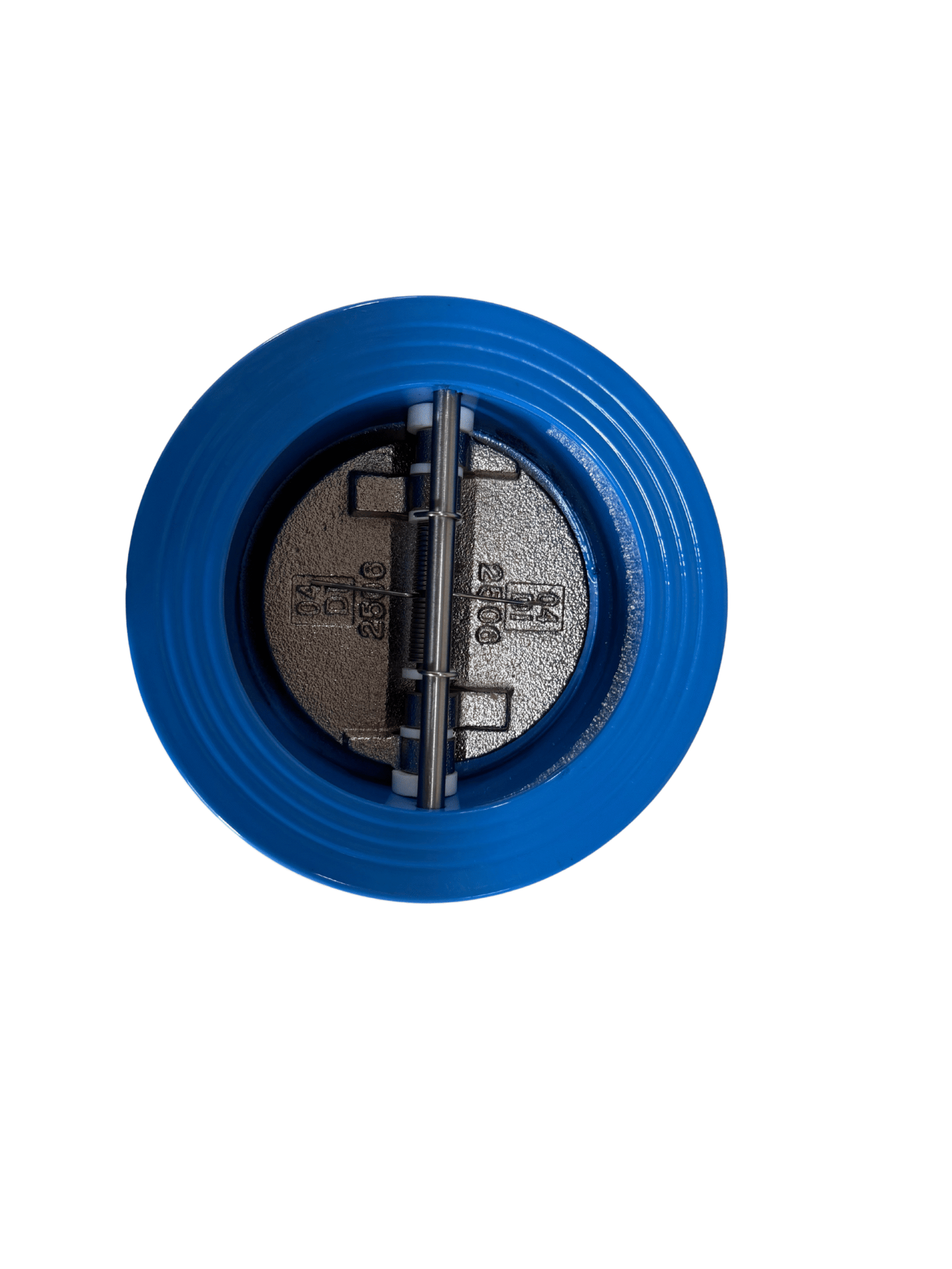

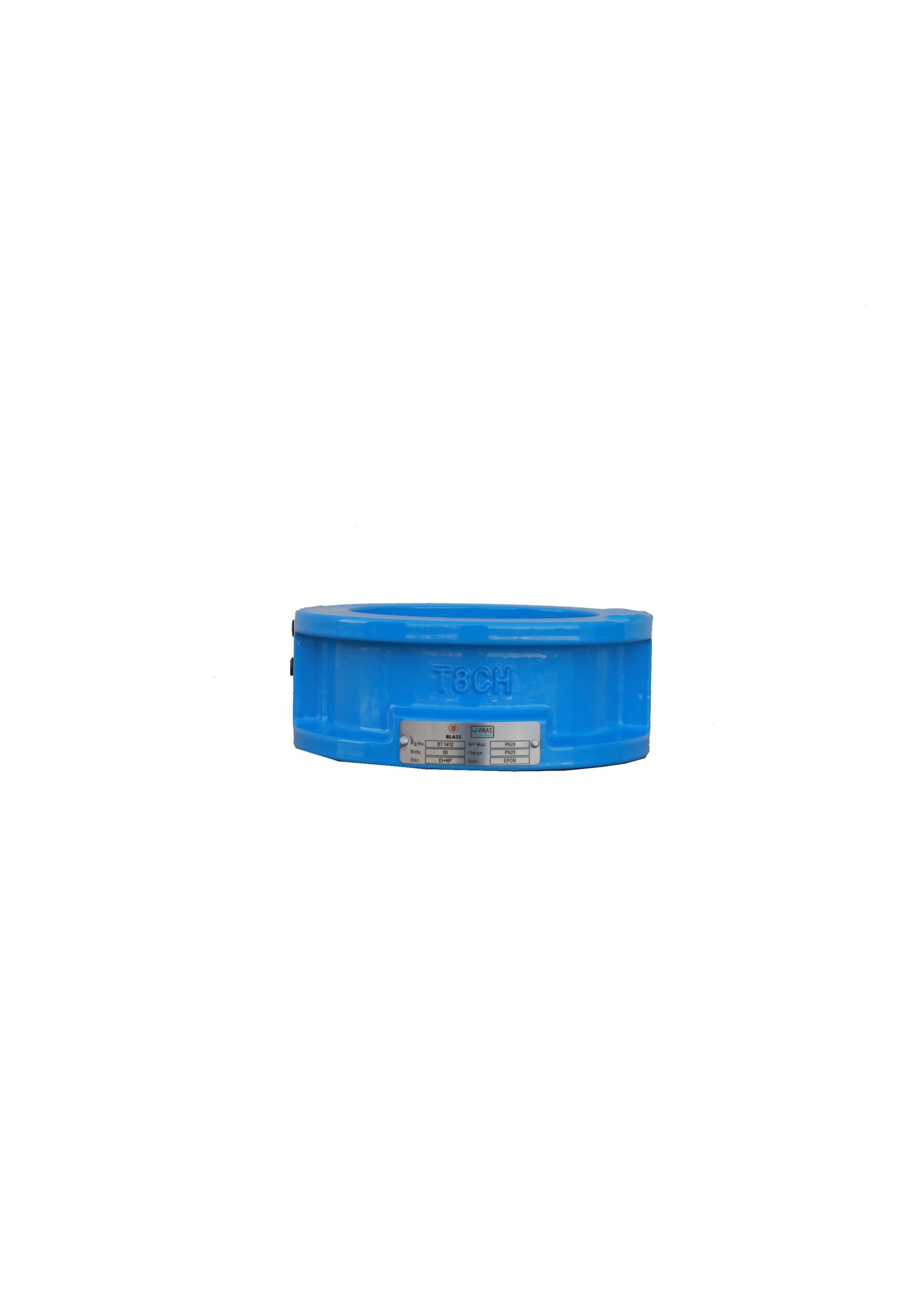

The BLAZE™ BT 1411 Double Door Wafer Check Valve is a robust and compact non-return valve designed for use in HVAC, plumbing, and industrial water systems. With its space-saving wafer-style body and dual spring-loaded discs, the valve ensures silent and efficient prevention of backflow. Engineered in accordance with BS EN 12334, the valve supports installation between BS EN 1092-2 PN 16 flanges, making it suitable for a wide range of system layouts. WRAS approval for sizes 2″ to 12″ ensures compatibility with potable water systems, while larger sizes up to 36″ are built to the same high standards for industrial use. The valve features epoxy-coated ductile iron components, a WRAS-approved EPDM seat, and a stainless-steel spring, offering durability, chemical resistance, and long operational life across a wide temperature range.

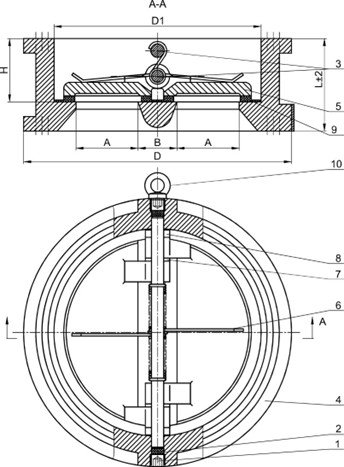

| DN | L | ØD1 | A | B | ØD |
|---|---|---|---|---|---|
| 50 | 43 | 65 | 12 | 16 | 103 |
| 65 | 46 | 80 | 21.5 | 17 | 123 |
| 80 | 64 | 94 | 22.5 | 25 | 142 |
| 100 | 64 | 117 | 32 | 24 | 157 |
| 125 | 70 | 145 | 43.5 | 28 | 192 |
| 150 | 76 | 170 | 51 | 32 | 218 |
| 200 | 89 | 224 | 70.5 | 41 | 268 |
| 250 | 114 | 264 | 90 | 40 | 328 |
| 300 | 114 | 310 | 108 | 44 | 380 |
- HVAC systems – chilled water, hot water, and condenser lines
- Potable water networks and plumbing systems
- Industrial water supply, cooling systems, and process pipelines
- Pump discharge applications – backflow prevention
Description
- WRAS Approved for 2″-12″ – safe for drinking water applications
- Design Standard: BS EN 12334
- Flange Compatibility: BS EN 1092-2 PN 16
- Working Pressure: PN 16 (16 bar) Working Temperature: – 20 deg * C to 120 deg * C
- Color: RAL 5015 (Blue epoxy-coated body)
- Compact wafer-type design for easy installation
- Spring-assisted dual disc for quick closing and reduced water hammer
- Suitable for horizontal and vertical (upward flow) installations
Additional information
| Design Standard | BS EN 12334 |
|---|---|
| Working Pressure | PN 16 (16 bar) |
| Flange Compatibility | BS EN 1092-2 PN 16 |
| Model Number | BT 1411 |
| Working Temperature: | – 20 deg * C to + 120 deg * C |
