FCU Hook Up
The Blaze BT 1213 FCU Hook-Up is a compact, pre-assembled valve arrangement designed to simplify the installation and maintenance of Fan Coil Units (FCUs) in HVAC systems. Engineered for use with chilled or heating water, it allows efficient flow control, isolation, and flushing operations. Rated for PN 25 pressure and built with ISO 7 threaded connections, this unit ensures reliable operation under high-pressure and temperature conditions up to 100°C.

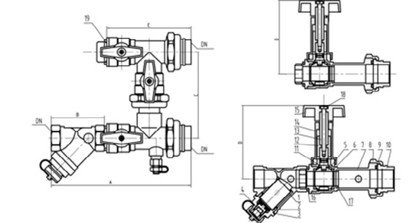

| DN | INCH | A | B | C | D | E |
|---|---|---|---|---|---|---|
| 15 | ½" | 168 | 65 | 160 | 0.14 | |
| 20 | ¾" | 185 | 70 | 113 | 0.24 | |
| 25 | 1" | 210 | 80 | 155 | 0.313 | |
| 32 | 1¼" | 240 | 90 | 155 | 0.49 |
- Fan Coil Unit (FCU) installations in HVAC systems
- Commercial buildings and office spaces
- Hotels, hospitals, and residential complexes
- Chilled water and hot water distribution systems
- Energy-efficient HVAC zones
- Retrofit and new construction projects
Description
- Complete, compact valve assembly for FCU connections
- Supports both chilled water and hot water systems
- High pressure capacity: PN 25
- ISO 7 (BSPT) threaded pipe connections for secure installation
- Enables isolation, flushing, and commissioning of FCU
- Reduces installation time and site labor
- Compatible with vertical and horizontal FCU configurations
- Optional accessories include drain cocks, unions, strainers, and test points
Additional information
| Working Pressure | PN25 |
|---|---|
| Medium | Chilled or Heating Water |
| Working temperature | <100° |
| Product Type | FCU Hook-Up (Valve |
| Model Number | BT 1213 |
| Pipe Thread | ISO 7 (BSPT – British |
| Installation Orientation | Suitable for vertical or horizontal FCUs |
| Components (typical) | Ball valve, strainer, drain valve, union, and commissioning valve (as applicable) |
