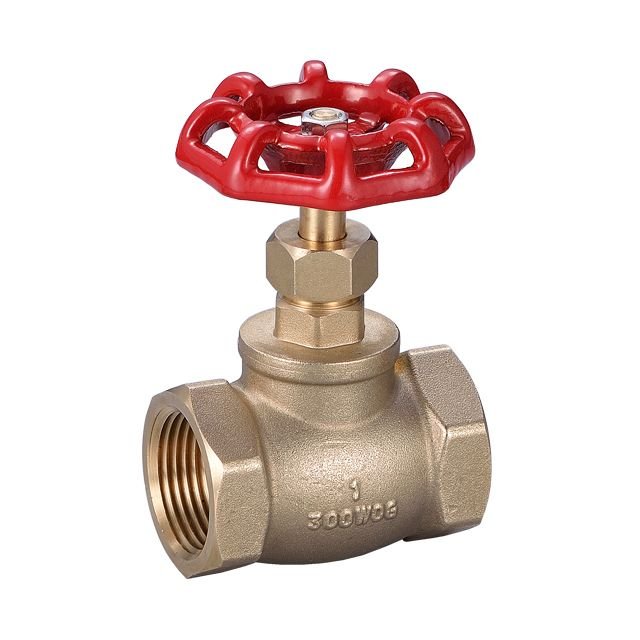

Brass Globe Valve
The BT-1204 Brass Globe Valve is a precision-engineered valve designed for regulating flow in water, oil, and steam systems. With a PN 16 working pressure and temperature resistance up to 170°C, it ensures safe and efficient operation in demanding conditions. This valve features BSPT threads compliant with EN 10226-1 / ISO 7, providing reliable sealing and easy installation. Offered in sizes from 1½” to 2″ (DN15-DN50), it is ideal for applications requiring accurate flow control and shut-off.

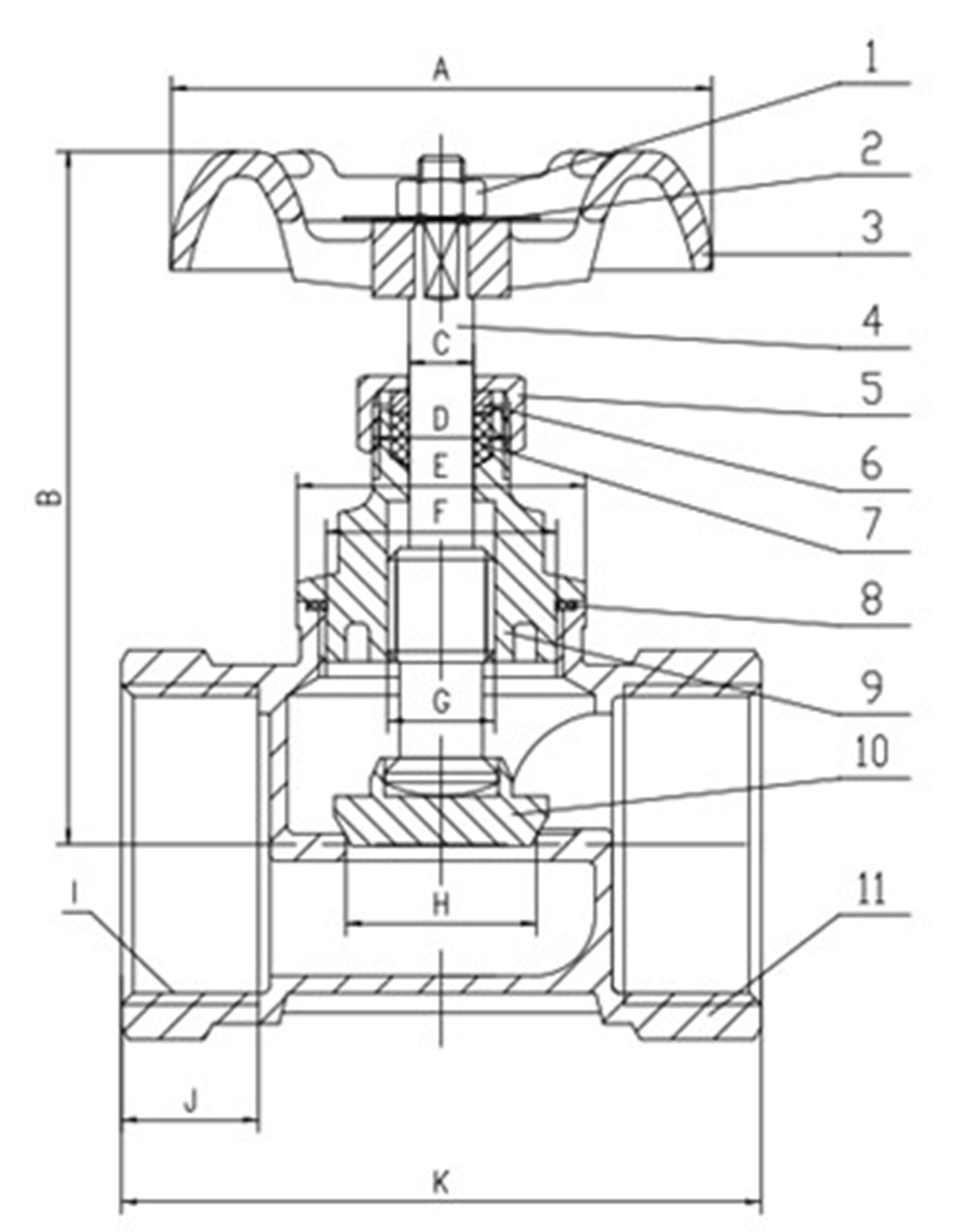

| DN | INCH | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | ½” | Ø53 | 62 | Ø7.2 | M15x1 | Ø23 | M18x1.5 | Tr10x2() | Ø11 | G1/2-14 | 10.5 | 48 |
| 20 | ¾” | Ø53 | 65 | Ø8 | M16x1 | Ø25 | M20x1.5 | Tr10x2() | Ø12.7 | G3/4-14 | 11 | 54 |
| 25 | 1” | Ø59 | 76 | Ø8 | M16x1 | Ø31 | M26x1.5 | Tr12x2() | Ø19 | G1-11 | 14 | 67 |
| 32 | 11/4” | Ø71 | 97 | Ø8.5 | M18x1.5 | Ø38 | M32x1.5 | Tr14x2() | Ø25 | G11/4-11 | 16 | 78 |
| 40 | 11/2” | Ø78 | 100 | Ø9.5 | Ø9.5 | Ø47 | M40x1.5 | Tr16x3 | Ø33 | G11/2-11 | 16 | 87 |
| 50 | 2” | Ø97 | 120 | Ø12 | M24x1.5 | Ø54 | M24x1.5 | Tr18x3 | Ø40 | G2-11 | 19 | 100 |
- Water supply and distribution systems
- Oil and steam pipelines
- HVAC and heating systems
- Industrial process control
- Residential and commercial plumbing
Description
- Durable brass construction
- Working pressure: PN 16
- Suitable for water, oil, and steam
- Max working temperature: <170°C
- BSPT threads (EN 10226-1 / ISO 7)
- Precise flow regulation
- Sizes from ½” to 2″ (DN15-DN50)
Additional information
| Working Pressure | PN16 |
|---|---|
| Medium | Water, Oil & Steam |
| Max temperature | <170°C |
| BSPT threads | (EN 10226-1 / ISO 7) |
| Model Number | BT 1204 |
| Size Range | m ½” to 2” (DN15–DN50) |
