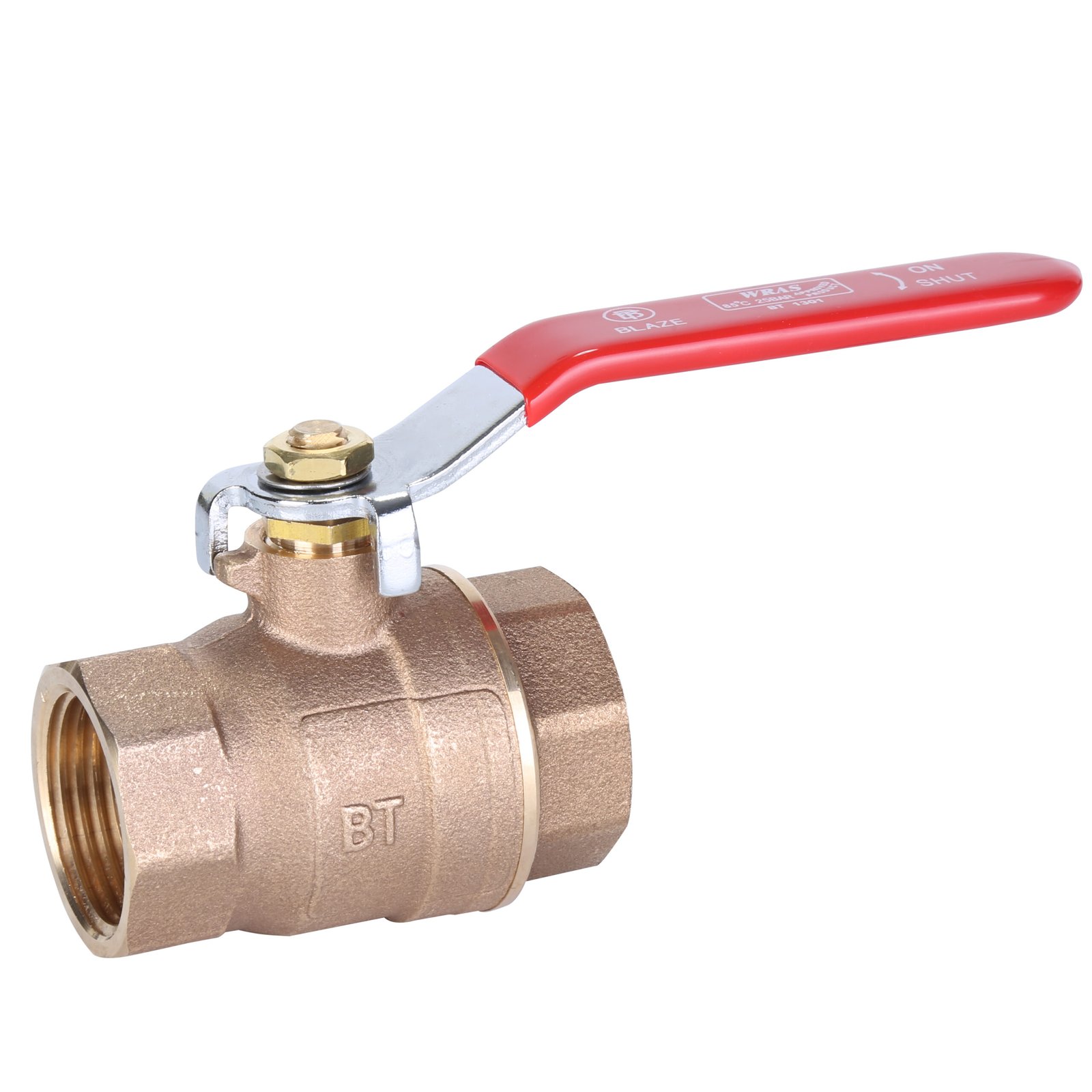

Bronze Ball Valve
The BLAZE BT 1301 is a compact, high-performance bronze ball valve designed for reliable shut-off in water, oil, and steam systems. With a PN 25 pressure rating and WRAS approval, it is ideal for residential, commercial, and industrial use.

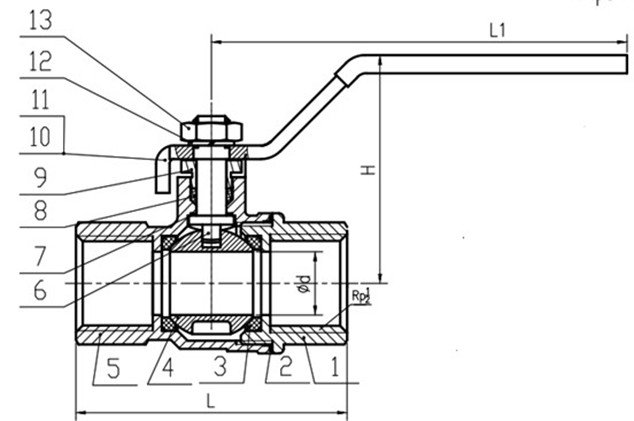

| DN | INCH | L | L1 | d | H |
|---|---|---|---|---|---|
| 15 | ½" | 95 | 14 | 14 | 44 |
| 20 | ¾" | 110 | 19 | 19 | 51 |
| 25 | 1" | 110 | 24 | 24 | 55 |
| 32 | 1¼" | 140 | 31 | 31 | 65 |
| 40 | 1½" | 140 | 38 | 38 | 70 |
| 50 | 2" | 160 | 49 | 49 | 83 |
Description
- Bronze body for corrosion resistance
- Full bore design (if applicable)
- WRAS approved for potable water
- BSPT threaded ends (ISO 7)
- PN 25 (2.5 MPa) working pressure
- Max temperature <170°C
- Size range: 1/2″-2″ (DN15-DN50)
Additional information
| Working Pressure | PN 25 (2.5 MPa) |
|---|---|
| Medium | Water, Oil, Steam |
| Max temperature | <170°C |
| Model Number | BT 1301 |
| Size Range | ½”–2” (DN15–DN50) |
| Material | Bronze |
| Connection Type | BSPT (ISO 7) |
| Certification | WRAS Approved |
