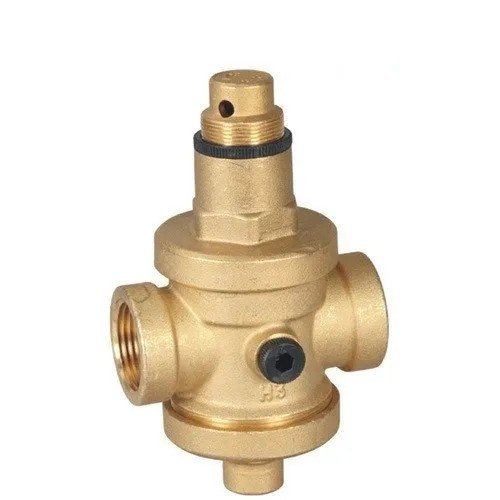

Brass Pressure Reducing Valve
The Blaze BT 1208 Brass Pressure Reducing Valve is engineered to regulate and maintain a stable downstream pressure in plumbing and gas systems. Designed for reliability and efficiency, it reduces inlet pressure to a user-defined, consistent outlet pressure, ensuring safe operation of connected devices. Suitable for water and gas, this compact valve operates under a working pressure of PN16 and temperatures up to 170°C, making it ideal for residential and commercial use.

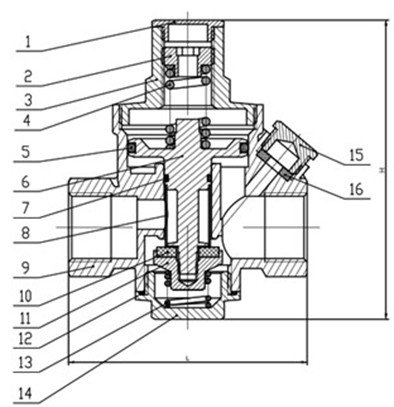

| DN | INCH | L | H |
|---|---|---|---|
| 15 | ½" | 72 | 93 |
| 20 | ¾" | 72 | 93 |
| 25 | 1" | 78 | 110 |
| 32 | 1¼" | 85 | 116 |
| 40 | 1½" | 100 | 154 |
| 50 | 2" | 110 | 154 |
- Domestic water supply systems
- Building plumbing networks
- Gas supply and distribution lines
- Appliances requiring pressure stabilization
- HVAC and heating systems
- Safety regulation in low-pressure piping networks
Description
- Durable brass construction for corrosion resistance
- Stable outlet pressure control range: 0.1 – 0.4 MPa
- Compatible with both water and gas mediums
- Compact design with ISO 7 threaded ends for easy installation
- High working temperature tolerance up to 170°C
- Designed for low-maintenance, long-term use
- Suitable for residential and light commercial pressure regulation
Additional information
| Working Pressure | PN16 |
|---|---|
| Medium | Water & Gas |
| Working temperature | <170°C |
| Product Type | Brass Pressure Reducing Valve |
| Model Number | BT 1208 |
| Outlet Pressure Range | 0.1 – 0.4 MPa |
| Pipe Thread | ISO 7 (BSPT – British Standard Pipe Taper) |
| Installation Orientation | Horizontal preferred |
