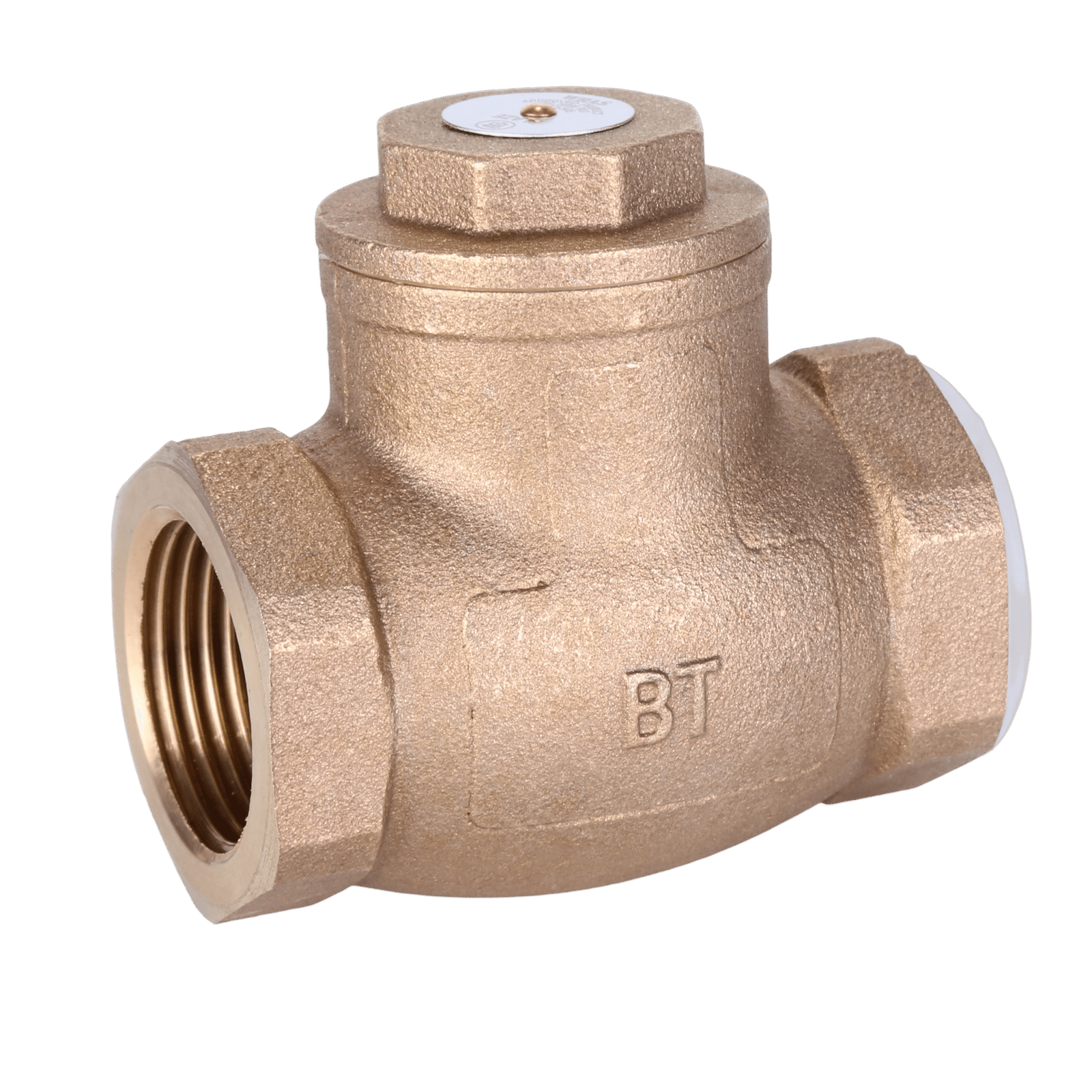

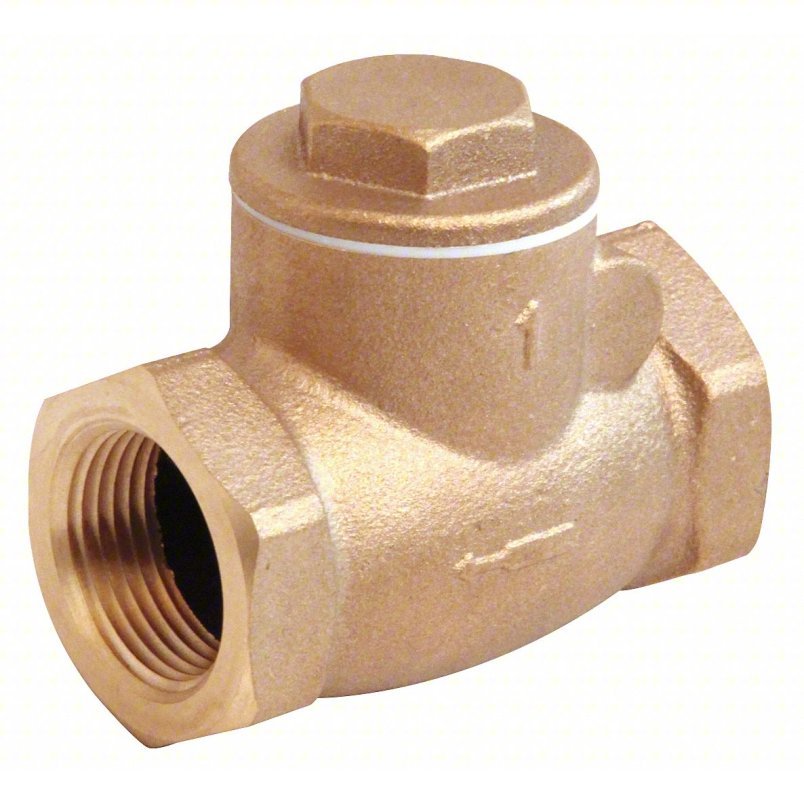

Bronze Vertical Lift Check Valve
The BLAZE BT 1305 Bronze Vertical Lift Check Valve is designed to prevent backflow in vertical pipelines carrying water, oil, or gas. Engineered from high-quality bronze, it ensures dependable operation under moderate pressure and temperature, while complying with BS5154 standards and featuring ISO 7 threaded connections.

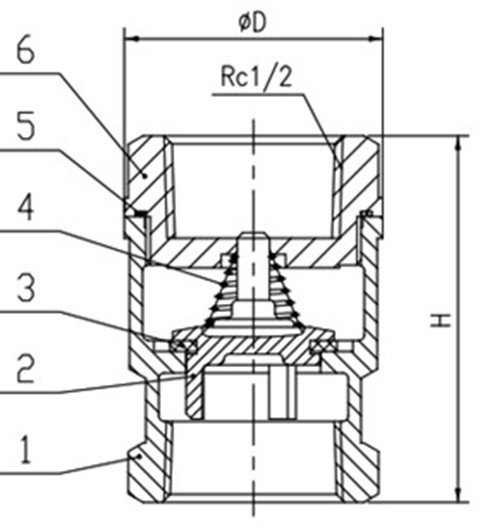

| DN | INCH | D | H |
|---|---|---|---|
| 15 | ½" | 33 | 53 |
| 20 | ¾" | 41 | 60 |
| 25 | 1" | 47 | 68 |
| 32 | 1¼" | 58 | 79 |
| 40 | 1½" | 70 | 85 |
| 50 | 2" | 82 | 98 |
Description
- Durable bronze body
- Vertical lift mechanism for effective backflow
- prevention
- Compatible with water, oil, and gas
- Pressure rating: PN20
- Temperature rating: up to 110°C
- ISO 7 BSPT threaded connections
- Complies with BS5154 standard
- Size range: 1½” – 2″
Additional information
| Working Pressure | PN20 |
|---|---|
| Medium | Water, Oil, Gas |
| Working temperature | < 110°C |
| Model Number | BT 1305 |
| Size Range | ½” – 2” (DN15 – DN50) |
| Material | Bronze |
| Thread Standard | ISO 7 BSPT |
| Compliance | BS5154 |
