Bronze Y Strainer
The BLAZE BT 1307-A Bronze Y Strainer is designed to protect pipelines and equipment by filtering out debris from water, oil, or gas systems. Built for durability and reliability, it operates efficiently under high pressure and temperature conditions, making it ideal for a wide range of plumbing and industrial applications.

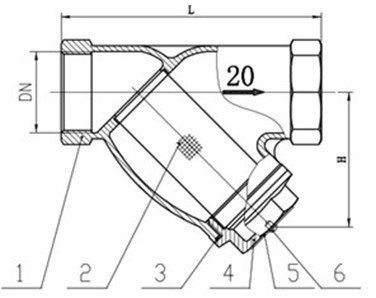

| DN | INCH | H1 | H1 | H |
|---|---|---|---|---|
| 15 | ½" | 40 | 74 | 34 |
| 20 | ¾" | 45 | 86.5 | 34 |
| 25 | 1" | 64 | 108 | 34 |
| 32 | 1¼" | 71 | 122 | 17 |
| 40 | 1½" | 81 | 135 | 17 |
| 50 | 2" | 96 | 163 | 17 |
| 65 | 2½" | 110 | 226 | 9 |
| 80 | 3" | 142 | 255 | 9 |
| 100 | 4" | 175 | 327 | 9 |
Description
- High-strength bronze construction
- Filters particles to protect valves and equipment
- Suitable for water, oil, and gas systems
- High working pressure: 2.0 MPa
- Temperature tolerance: up to 170°C
- BSPT threaded ends (ISO 7 standard)
- WRAS certified for potable water use
- Size range: 1½” – 2″
Additional information
| Working Pressure | 2.0 MPa |
|---|---|
| Medium | Water, Oil, Gas |
| Working temperature | <170°C |
| Model Number | BT 1307-A |
| Size Range | ½” – 2” (DN15 – DN50) |
| Material | Bronze |
| Thread Standard | ISO 7 BSPT |
| Approval | WRAS |
