Beam Clamp (BT BCT / BT BCU)

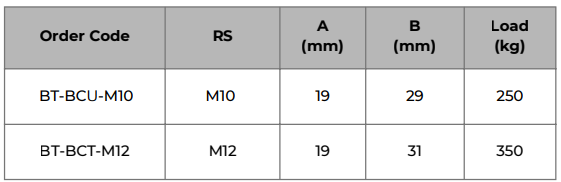

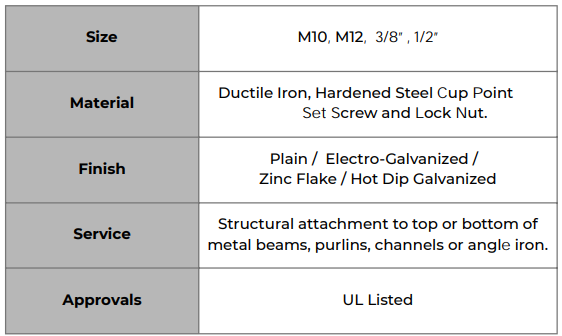

The Beam Clamp is designed for secure attachment to the top or bottom of metal beams, purlins, channels and angle iron. Manufactured from ductile iron with a hardened steel cup-point set screw and lock nut, it provides a strong and reliable connection for structural applications. Available in M10, M12, 3/8 in. and 1/2 in. sizes, with loads up to 350 kg, the clamp is offered with plain, electro-galvanised or zinc-flake finishes and is available with threaded or non-threaded configurations.
