Fixed Orifice Double Regulating Valve
The BLAZE Fixed Orifice Double Regulating Valve (FODRV) is a precision-engineered solution balancing flow in potable water, HVAC, and mechanical systems. Designed for reliable performance, tne vaive features an integral orifice plate that forms a fixed orifice flow measurement unit, allowing accurate commissioning, regulation, and isolation of flow circuits. Manufactured with a ductile iron body and coated with Fusion Bonded Epoxy (RAL 5015 Blue), it offers excellent protection against corrosion and ensures safe use in potable water systems. A lockable handwheel with position indicator supports repeatable settings, while built-in test points allow direct differential pressure readings for flow verification.

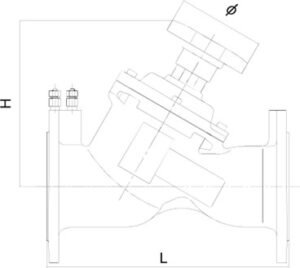

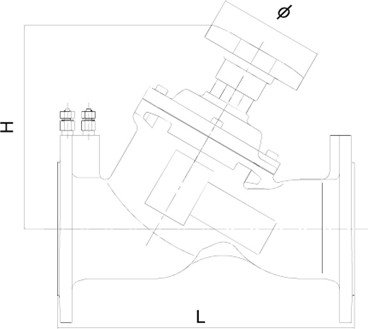

| DN(mm) | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|
| DN(inch) | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| H | 228 | 235 | 239 | 298 | 311 | 507 | 570 | 686 |
| L | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 |
| Ø | 150 | 150 | 150 | 150 | 150 | 280 | 420 | 420 |
- Potable water distribution and balancing
- HVAC chilled and hot water circuits
- Mechanical service systems
- Pump circuit and equipment flow control
- Industrial process water regulation
Description
- Integral orifice plate forms a fixed flow measurement unit with regulation and isolation capabilities
- Double regulating design for precise manual adjustment
- Lockable handwheel with position indicator for consistent balancing
- Built-in test points for accurate differential pressure measurement
- FBE coating (RAL 5015) for internal and external corrosion protection
- Suitable for both supply and return installations
- PN16 flanged ends, compliant with EN 1092-2
Additional information
| Test Points | Included |
|---|---|
| Working Pressure | PN 16 |
| End Connection | PN16 Flanged |
| Coating | Fusion Bonded Epoxy (RAL 5015 Blue) |
| Body Material | Ductile Iron (DI) |
| Model Number | BT 1420 |
| Size Range | 2½" to 12" (DN65 to DN300) – WRAS Approved |
