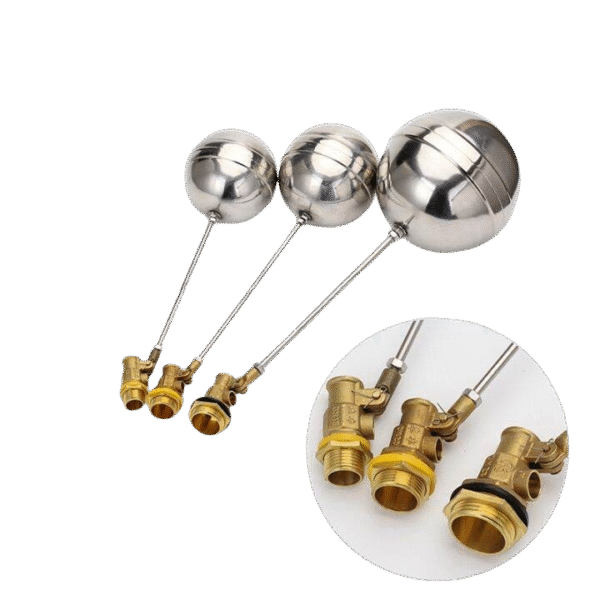

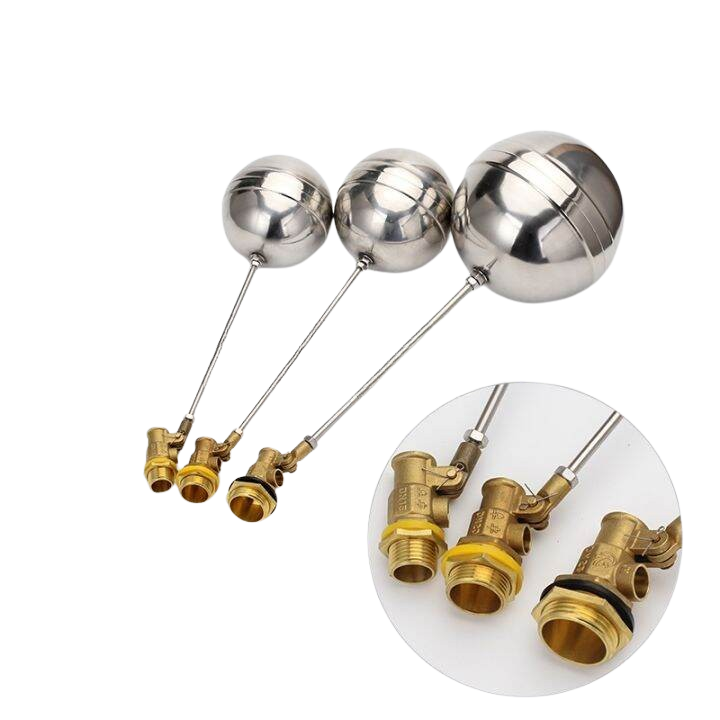

Float Valve with Stainless Steel Ball
The Blaze BT 1212 Brass Float Valve is designed for automatic level control in water storage systems such as tanks, reservoirs, and cisterns. It uses a stainless steel float ball to open or close the valve based on water level, ensuring efficient water regulation without the need for manual intervention. Built from high-quality brass and rated for PN 10 MPa, this valve is ideal for high-pressure water systems requiring reliable and maintenance-free operation.

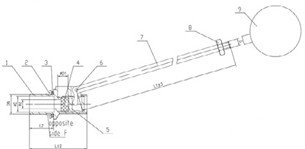

| DN | INCH | L | L1 | L2 | d | D | D1 | F |
|---|---|---|---|---|---|---|---|---|
| 15 | ½" | 64 | 64 | 25 | 6 | 16 | 12 | 24 |
| 20 | ¾" | 66 | 66 | 27 | 6 | 20.5 | 12 | 30 |
| 25 | 1" | 68 | 68 | 29 | 8 | 26.5 | 12 | 36.5 |
| 32 | 1¼" | 121 | 121 | 45 | 15 | 34.5 | 24 | 45.5 |
| 40 | 1½" | 131 | 131 | 50 | 17 | 40 | 27 | 53 |
| 50 | 2" | 131 | 131 | 50 | 17 | 49.5 | 27 | 65 |
| 65 | 2½" | 143 | 143 | 50 | 25 | 66 | 30 | 88 |
| 80 | 3" | 152 | 152 | 50 | 35 | 78 | 35 | 100 |
| 100 | 4" | 169 | 169 | 50 | 40 | 103 | 45 | 125 |
| Weight body+Rod(g) | BALL (SIZE) | PP BALL Weight | L1 | Weight Body+Rod(g) | Stainless Steel Ball(Size) | Stainless Steel (weight) | Copper Ball (Size) | Copper Ball (weight) |
|---|---|---|---|---|---|---|---|---|
| 194 | 4.5" | 65 | 13401 | 100mm | 80 | 100mm | 80 | |
| 220 | 5" | 95 | 1635 | 120mm | 115 | 120mm | 120 | |
| 295 | 6" | 150 | 2535 | 150mm | 190 | 150mm | 220 | |
| 806 | 8" | 370 | 3280 | 200mm | 390 | 200mm | 400 | |
| 1135 | 10" | 370 | M14-650 | 4520 | 250mm | 550 | 250mm | 650 |
| 1431 | 12" | 570 | M14-680 | 1635 | 250mm | 550 | 250mm | 650 |
| 2131 | 12" | 1245 | M14-880 | 2535 | 330mm | 880 | 350mm | 2200 |
| 2875 | 12" | 1245 | M14-1000 | 3280 | 330mm | 880 | 350mm | 2200 |
| 4115 | 12" | 1245 | M14-1140 | 4520 | 30mm | 880 | 350mm | 2200 |
- Overhead water tanks and reservoirs
- Domestic and commercial water storage systems
- Irrigation tanks and agricultural water control
- Industrial process tanks
- Cooling tower make-up water control
- Gravity-fed water systems
Description
- Brass body for strength and corrosion resistance
- Stainless steel float ball for durability and hygienic operation
- Automatically maintains water levels in tanks and reservoirs
- High-pressure rating: PN 10 MPa
- BSPT threaded connection conforming to ISO 7
- Suitable for potable and non-potable water systems
- Smooth and responsive operation
- Compact and easy to install
Additional information
| Pressure Rating | PN 10 MPa |
|---|---|
| Medium | Water |
| Working temperature | <90°C |
| Body Material | Brass |
| Model Number | BT 1212 |
| Product Type | Brass Float Valve with Stainless Steel Ball |
| Pipe Thread | ISO 7 (BSPT – British Standard Pipe Taper) |
| Float Ball Material | Stainless Steel |
