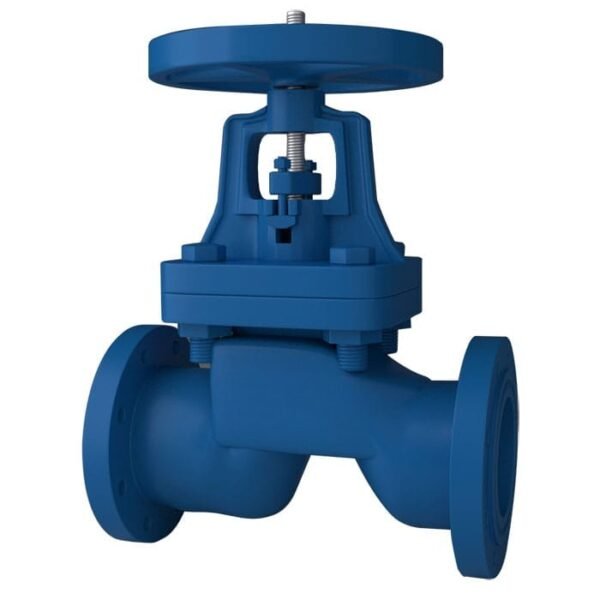

OS&Y Globe Valve
The Blaze BT 1408 OS&Y Globe Valve is a robust and high-performance valve designed for reliable flow control in various industrial applications. Built to meet EN standards, it features precise throttling capabilities, corrosion protection, and a durable rising stem (OS&Y) configuration for visual valve position indication.

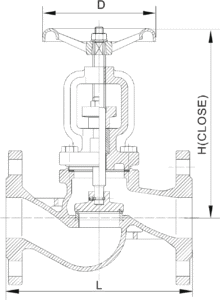

| DN (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN (inch) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 730 | 730 | 850 |
| H(CLOSE) | 260 | 164 | 166 | 192 | 199 | 235 | 261 | 300 | 357 | 396 | 465 | 635 | 635 | 800 |
| D | 100 | 100 | 120 | 120 | 140 | 140 | 200 | 200 | 240 | 280 | 315 | 400 | 400 | 500 |
- HVAC systems
- Oil & gas pipelines
- Water treatment plants
- Steam and thermal fluid systems
- Industrial processing systems
Description
- OS&Y (Outside Screw & Yoke) design for clear stem position visibility
- Durable body with FBE Coating (RAL 5015) internally and externally
- Excellent resistance to corrosion and wear
- Full compliance with EN 13789, EN 558-1 Series 1, and EN 1092-2 PN16
- Suitable for wide temperature range: -10°C to 200°C
Additional information
| Working Pressure | PN 16 |
|---|---|
| Coating | FBE Coating, Blue RAL 5015 (Internal & External) |
| Model Number | BT 1408 |
| Size Range | 2" to 12" (DN50 to DN300) |
| Type | OS&Y Type Globe Valve |
| Temperature Range | -10°C to 200°C |
| Medium | Water, Oil, Steam |
| Design Standard | EN 13789 |
| Face-to-Face | EN 558-1 Series 1 |
| Flange Standard | EN 1092-2 PN16 |
