OS&Y Resilient Seated Gate Valve

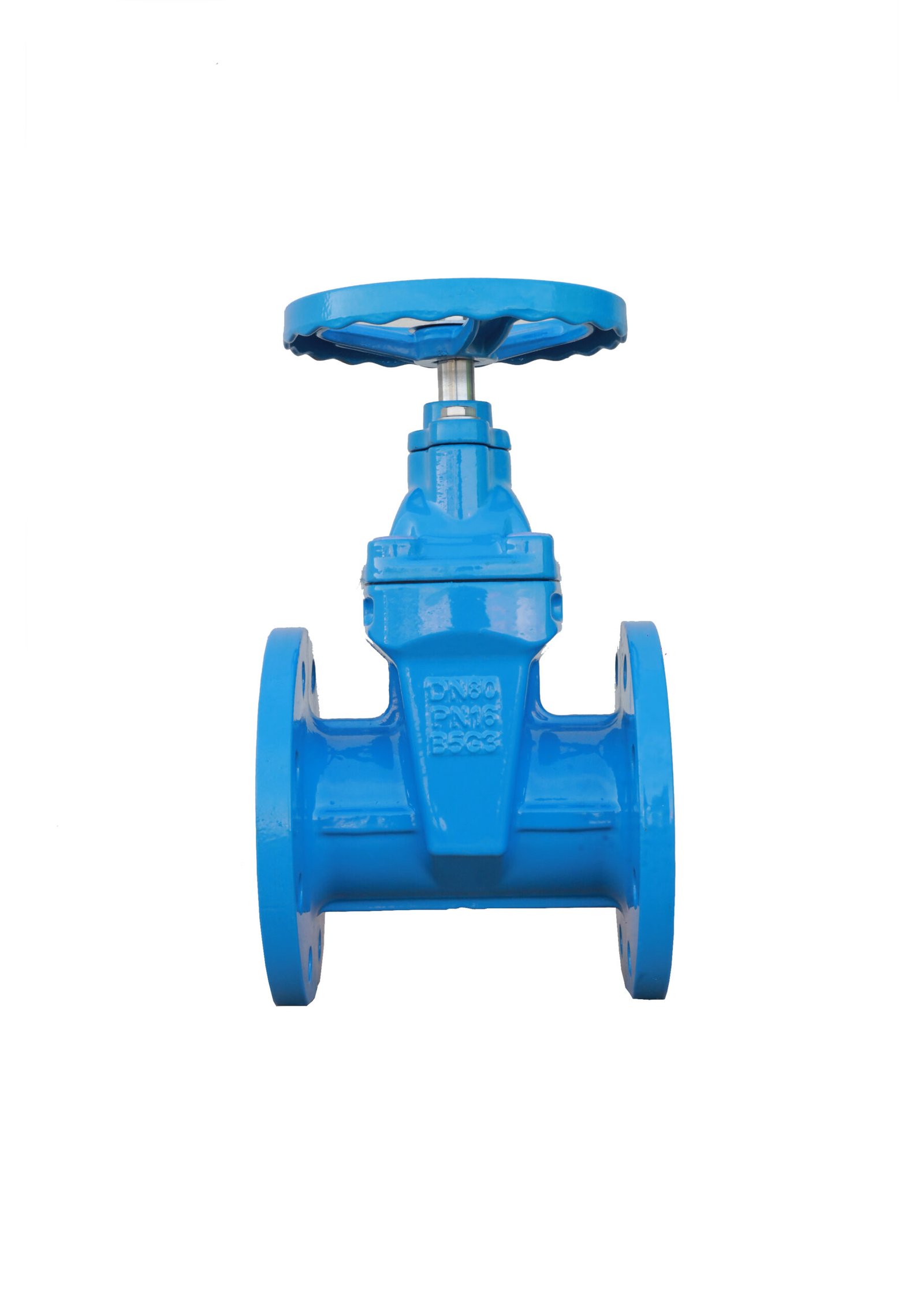

The BLAZE OS&Y Resilient Seated Gate Valve is designed for high performance in potable water systems, HVAC, mechanical services, and industrial applications. With an outside screw and yoke (OS&Y) design, it provides clear visual indication of valve position, enhanced maintenance accessibility, and reliable shut-off capability. Constructed with a durable ductile iron body and coated with Fusion Bonded Epoxy (FBE) in RAL 5015 blue, this valve is built for long service life, corrosion resistance, and hygienic performance. A resilient seated, fully encapsulated wedge ensures tight sealing and smooth operation.
| DN | L | H | a | d | c | n-d1 | T | f | g | ØD |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 178±2 | 303 | 50 | 165 | 125 | 4-Ø19 | 19 | 3 | 99 | 160 |
| 65 | 190±2 | 318 | 65 | 185 | 145 | 4-Ø19 | 19 | 3 | 118 | 160 |
| 80 | 203±2 | 375 | 80 | 200 | 160 | 8-Ø19 | 19 | 3 | 132 | 180 |
| 100 | 229±2 | 426 | 100 | 220 | 180 | 8-Ø19 | 19 | 3 | 156 | 200 |
| 125 | 254±3 | 547 | 125 | 250 | 210 | 8-Ø19 | 19 | 3 | 184 | 250 |
| 150 | 267±3 | 563 | 150 | 285 | 240 | 8-Ø23 | 19 | 3 | 211 | 250 |
| 200 | 292±3 | 735 | 200 | 340 | 295 | 12-Ø23 | 20 | 3 | 266 | 300 |
| 250 | 330±3 | 888 | 250 | 405 | 355 | 12-Ø28 | 22 | 3 | 319 | 350 |
| 300 | 356±3 | 937 | 300 | 460 | 410 | 12-Ø28 | 24.5 | 4 | 370 | 400 |
- Potable water supply systems
- HVAC chilled/hot water lines
- Fire protection and pump isolation
- Industrial and mechanical service pipelines
Description
- Full bore port prevents debris accumulation and ensures minimal pressure loss
- Fully encapsulated rubber disc provides reliable sealing and long-term durability
- Integral stem nut for secure stem retention and enhanced corrosion protection
- OS&Y configuration allows visible indication of valve position
- Ductile iron body with internal and external FBE coating (RAL 5015)
- WRAS approved sizes available (2″-12″) for potable water systems
- PN16 flanged connection, compliant with EN 1092-2
Additional information
| Working Pressure | PN 16 |
|---|---|
| Coating | Fusion Bonded Epoxy (FBE), RAL 5015 (Blue) |
| Body Material | Ductile Iron (DI) |
| Model Number | BT 1405 |
| Size Range | 2" to 12" (DN50 to DN300) – WRAS Approved 14" to 24" (DN350 to DN600) – Standard Design |
| Seat Material | EPDM, fully encapsulated wedge |
