U Bolt (BT UB)

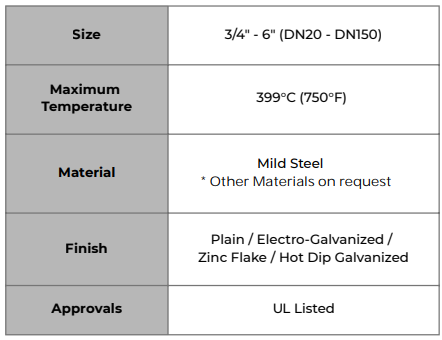

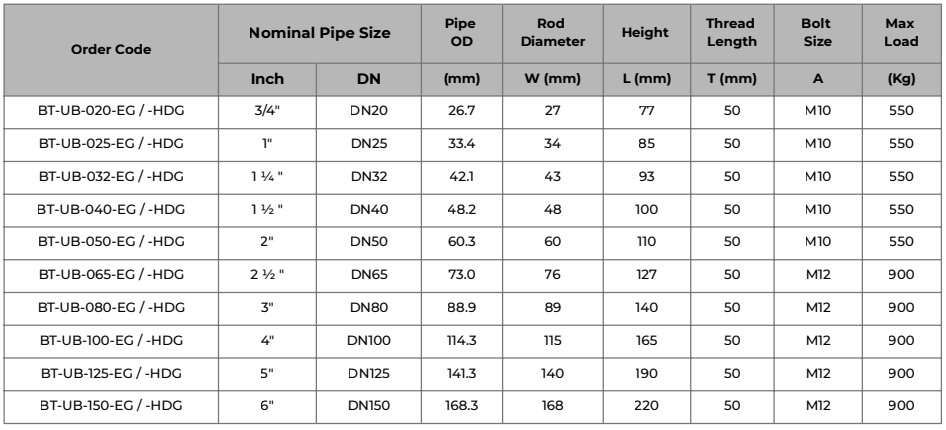

The BT UB U-Bolt is designed to secure pipework to structural members while providing reliable vertical support and restricting lateral movement. It allows axial movement where required and helps accommodate pipework installed above structural members. Manufactured from mild steel, the U-bolt features a longer straight thread length and is supplied with standard hex nuts. Available in electro-galvanised, hot-dip galvanised and zinc-flake finishes, it supports pipe sizes from ¾ in. to 6 in., with load capacities up to 900 kg and a maximum temperature rating of 399°C (750°F).
