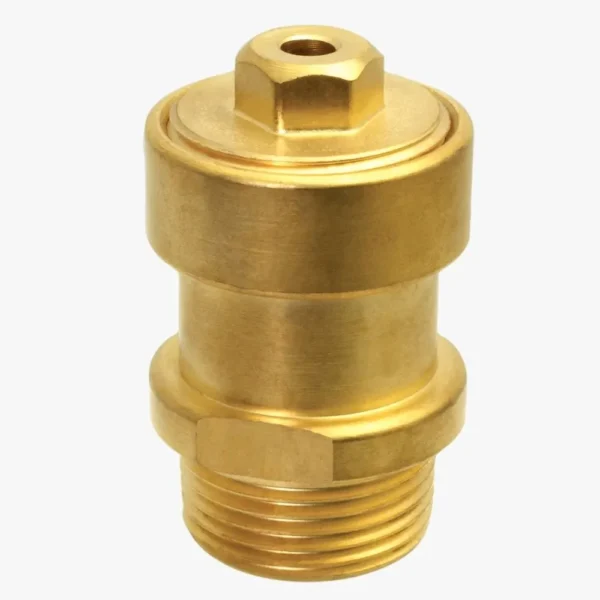

Brass Auto Air Vent
The Blaze BT 1210 Brass Auto Air Vent is designed to automatically release trapped air from water systems, enhancing efficiency and preventing issues like airlock, corrosion, and reduced flow. Manufactured from high-quality brass, this compact valve is ideal for use in closed-loop heating and cooling systems. With a working pressure of PN10 and a maximum temperature of 70°C, it provides reliable performance in domestic and commercial water applications.

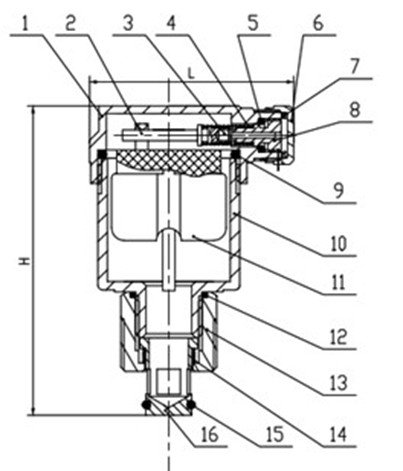

| DN | INCH | H | I |
|---|---|---|---|
| 15 | ½" | 68 | 50 |
| 20 | ¾" | 68 | 50 |
| 25 | 1" | 68.7 | 50 |
- Closed-loop heating systems (radiators, boilers, etc.)
- Chilled water and cooling systems
- Potable and non-potable water supply networks
- Solar heating systems
- HVAC equipment and piping
- Air elimination in pressure tanks and pump lines
Description
- Automatic air release for continuous system efficiency
- Corrosion-resistant brass construction
- Compact and lightweight design
- BSPT threaded connection compliant with ISO 7
- Maintenance-free operation
- Operating temperature up to 70°C
- Prevents airlock, noise, and system inefficiency
- Suitable for vertical installation on pipelines and equipment
Additional information
| Working Pressure | PN10 |
|---|---|
| Medium | Water |
| Working temperature | <70°C |
| Product Type | Brass Automatic Air Vent Valve |
| Model Number | BT 1210 |
| Size Range Pipe Thread | ISO 7 (BSPT – British Standard Pipe Taper) |
| Installation Orientation | Vertical |
