Clean Agent Gas Suppression System (FK 5-1-12)
Overview BT FK-5-1-12 is a pre-engineered clean agent suppression system that uses FK 5-1-12 to deliver rapid, residue free fire protection for sensitive and mission critical spaces. The system is engineered for fast knockdown, safe use around energized equipment, and minimal post event cleanup.

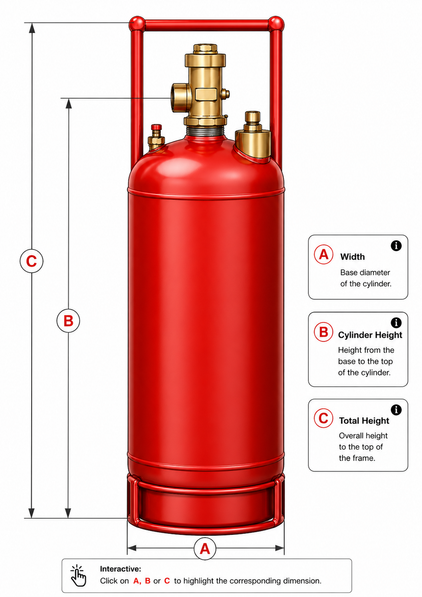

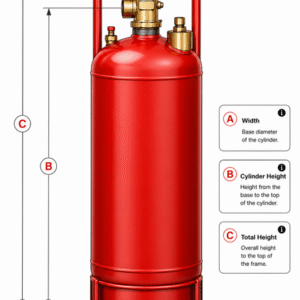

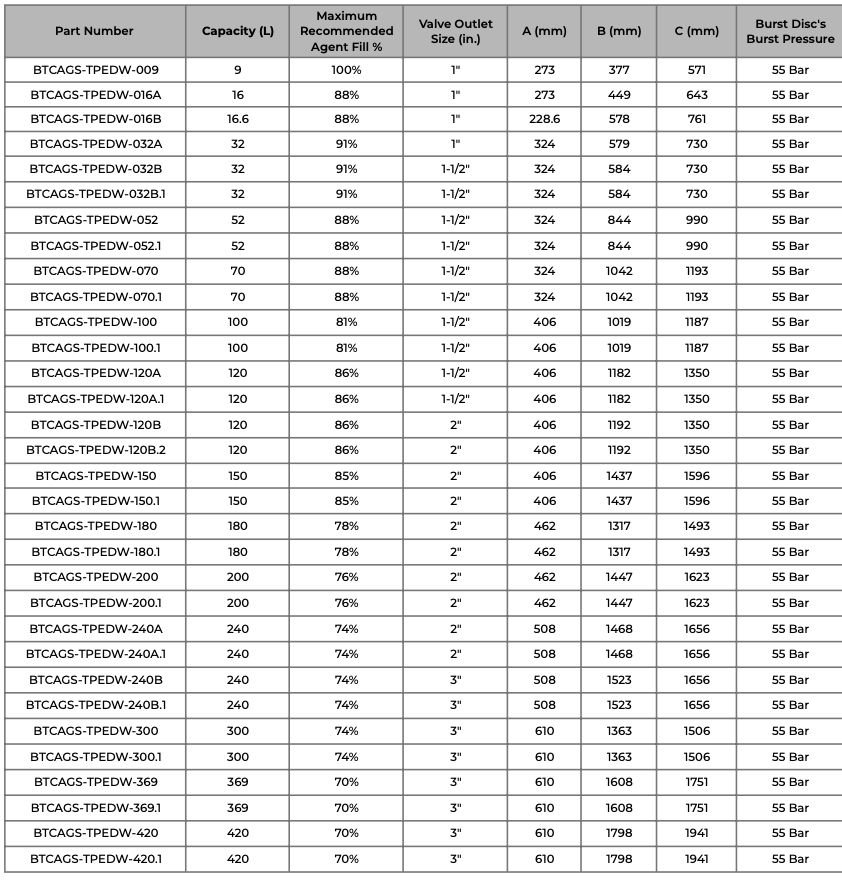

(Welded)Cylinder and Valve Assembly Dimensions for TPED Cylinders

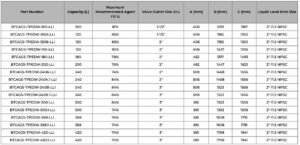

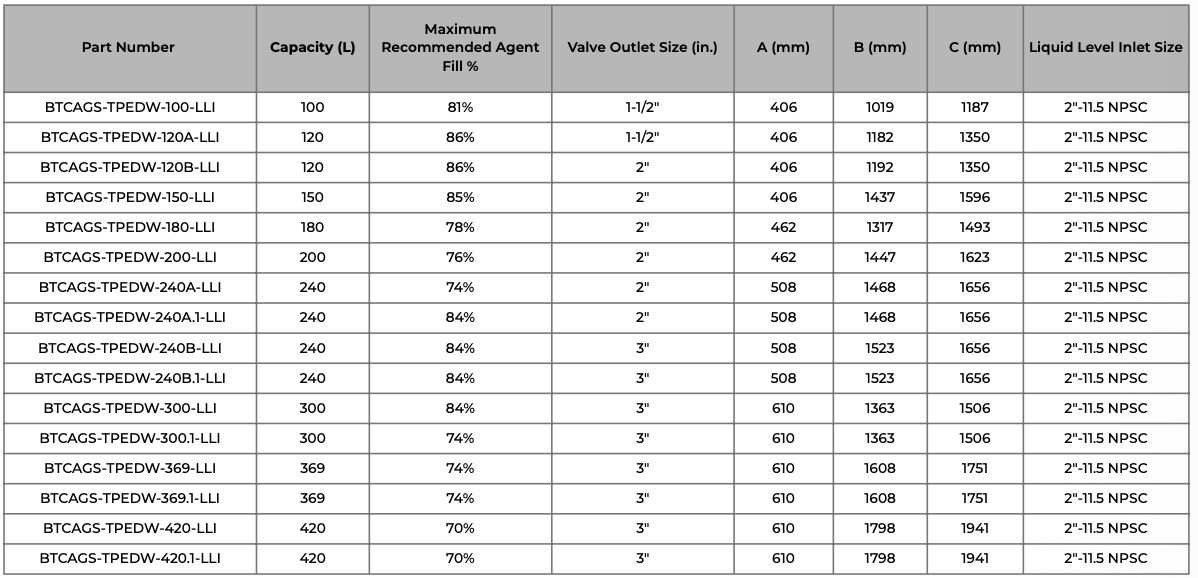

TPED Cylinders with Liquid Level Indicator

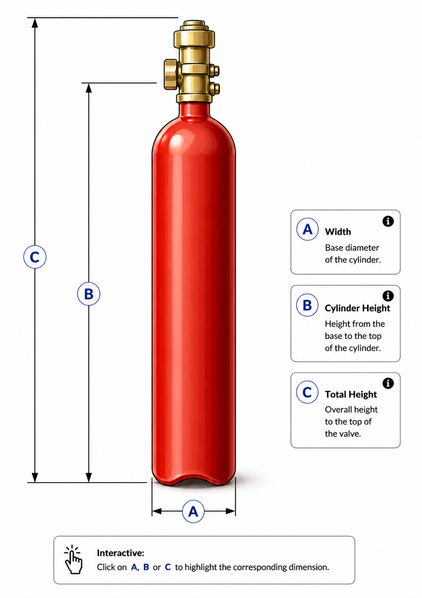

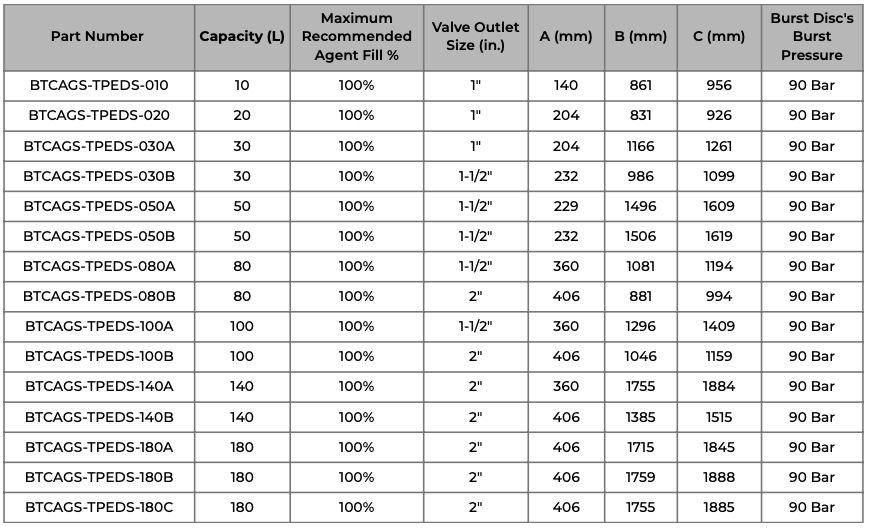

Seamless Cylinder and Valve Assembly Dimensions
- Data centers and server rooms
- Telecommunications facilities
- Control rooms and electrical switchgear rooms
- Archives, museums, and libraries
- Medical equipment rooms and laboratories
- Any space requiring rapid, residue free fire suppression
Description
- Agent: FK 5-1-12 (clean, electrically non conductive vapor)
- Discharge Pattern: Engineered for uniform distribution and rapid concentration achievement

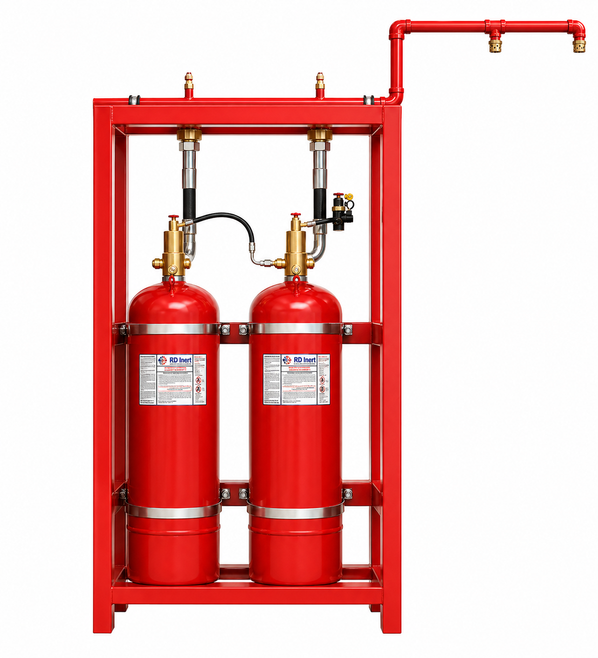

- Installation: Modular cylinder and manifold kits with BSP threaded nozzles; components secured to structural fixings
- Actuation: Electrical initiation with pneumatic pilot/master to slave release sequence
- Nozzle: 360° dispersion; multi orifice sizing in 0.1 mm increments for precise hydraulic balancing
- Environmental Profile: Low ozone depletion potential; suitable where ozone friendly agents are required

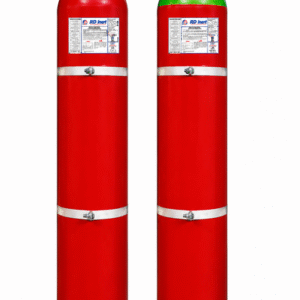

Cylinder Specifications, Welded – Standard Supply
| Material | Mild Steel |
| Filling – General Cylinder | 0.5 kg/L up to max 1kg/L |
| Filling – Cylinder with Liquid Level Indicator | 0.5 kg/L up to max 0.8kg/L |
| Filling Pressure | 25 bar @ 21°C |
| Test Pressure | 63 bar |
| Standard of Compliance | TPED Directive 2010/35/EU |
| Colour | Red |
Cylinder Specifications, Seamless – Optional Supply
| Material | Chromium Molybdenum Alloy Steel |
| Filling – General Cylinder | 0.5 kg/L up to max 1kg/L |
| Filling Pressure | 42 / 50 bar @ 21°C |
| Test Pressure | 300 bar |
| Standard of Compliance | ISO 9809-1 |
| Colour | Red |
