Clean Agent Gas Suppression System (HFC 227ea)
BT-200 ( HFC 227 ea) is a pre-engineered clean agent solution designed to protect critical spaces and sensitive equipment. The system stores and releases Heptafluoropropane (HFC 227ea) to rapidly suppress fires without leaving residue or harming electronic components. Agent Properties:
- Chemical name: Heptafluoropropane (HFC 227ea)
- Physical State: Liquified compressed gas (stored as liquid, discharged as vapor)
- Appearance and Odor: Colorless, low odor
- Electrical Properties: Electrically non conductive vapor suitable for electronic equipment protection
- Environmental Profile: Ozone friendly, considered suitable for applications requiring low ozone depletion potential

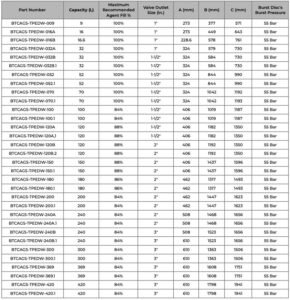

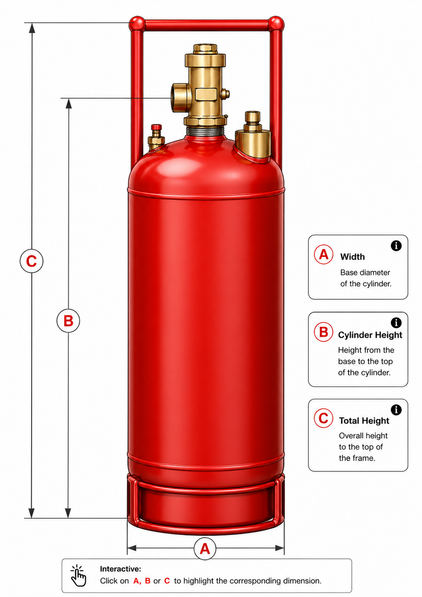

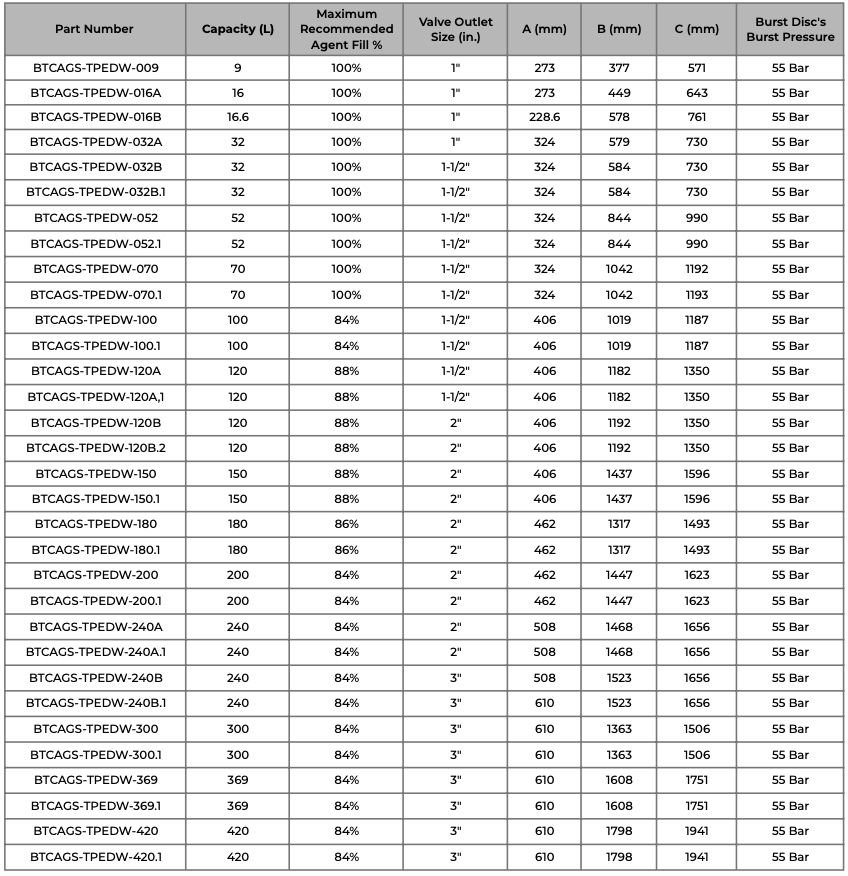

Cylinder and Valve Assembly Dimensions for TPED Cylinders

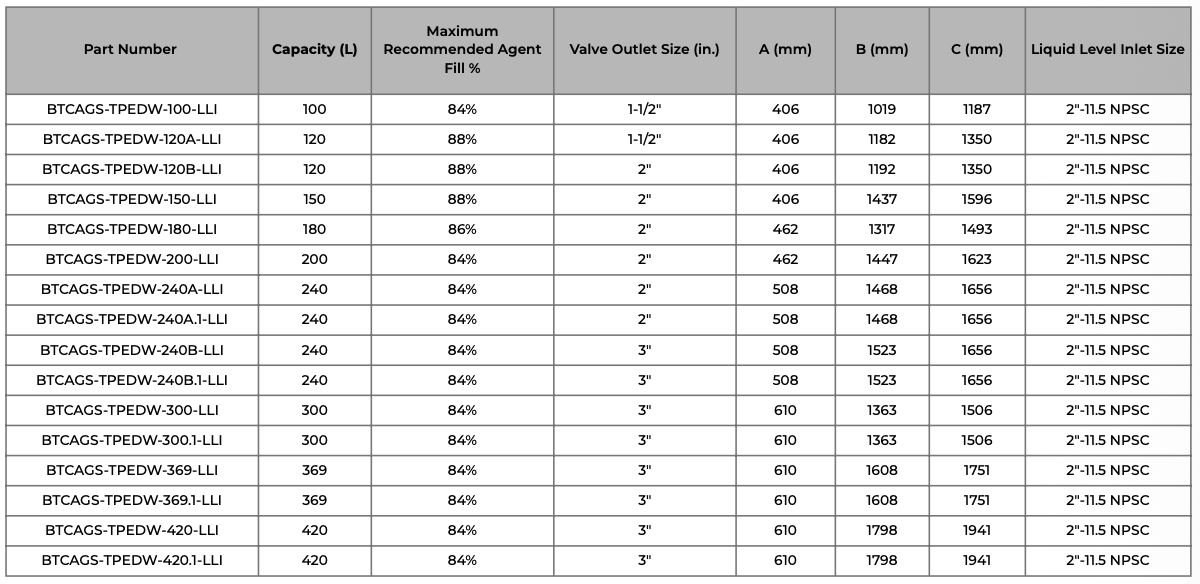

TPED Cylinders with Liquid Level Indicator

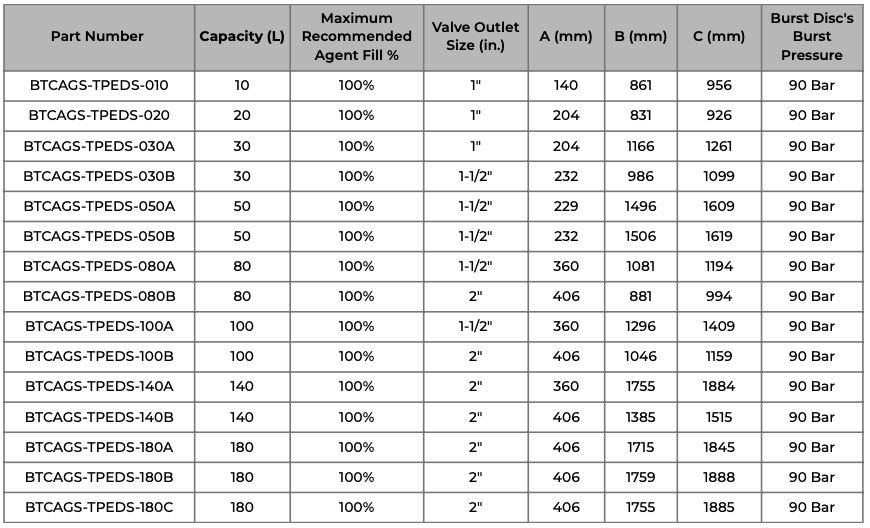

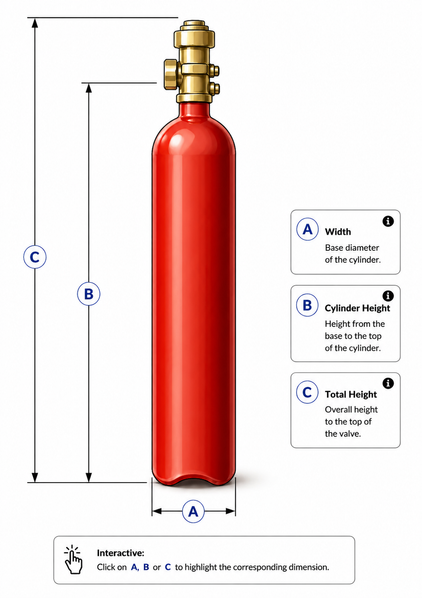

Seamless Cylinder and Valve Assembly Dimensions
- Data centers and server rooms
- Telecommunications facilities
- Control rooms and electrical switchgear rooms
- Archives, museums, and libraries
- Medical equipment rooms and laboratories
- Any space requiring rapid, residue free fire suppression
Description
- Fast Knockdown: Rapid discharge and fire suppression to minimize damage and downtime.
- Clean Agent: Leaves no residue, no post fire cleanup of sensitive equipment required.
- Non Conductive: Safe for use around energized electrical and electronic systems.
- Modular Design: Scalable for small enclosures to large equipment rooms.
- Reliable Actuation: Compatible with standard detection and release mechanisms.
- Serviceability: Designed for routine inspection, recharge, and maintenance.
Cylinder Specifications, Welded – Standard Supply
| Material | Mild Steel |
| Filling – General Cylinder | 0.5 kg/L up to maximum of 1kg/L |
| Filling – Cylinder with Liquid Level Indicator | 0.5 kg/L up to maximum of 0.8kg/L |
| Filling Pressure | 25 bar @ 21°C |
| Test Pressure | 63 bar |
| Standard of Compliance | TPED Directive 2010/35/EU |
| Colour | Red |
Cylinder Specifications, Seamless – Optional Supply
| Material | Chromium Molybdenum Alloy Steel |
| Filling – General Cylinder | 0.5 kg/L up to maximum of 1kg/L |
| Filling Pressure | 42 / 50 bar @ 21°C |
| Test Pressure | 300 bar |
| Standard of Compliance | ISO 9809-1 |
| Colour | Red |
