Test & Drain Valve

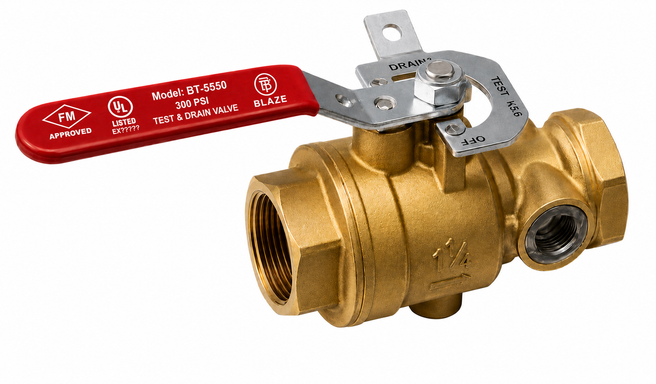

The BT 5550 Model Test and Drain Valve is a multi-functional 3-way forged brass valve specifically designed for the inspection and maintenance of fire sprinkler systems (compliant with NFPA 13, 13R, and 13D).
Description
- Three-in-One Operation: It serves as a stop valve during normal use, but can be switched to perform flow testing or to drain the system for maintenance.
- Integrated Monitoring: Features built-in, tamper-resistant sight glasses for visual confirmation of flow and a test orifice to simulate the activation of a single sprinkler head.
- Space-Saving: Replaces the need for multiple separate components (test loops, drain valves, and sight glasses) with one compact unit.
- Reliability: The tamper-resistant design prevents unauthorized adjustments to the test orifice or sight glasses.
- Single-handle ball valves featuring three distinct operating positions
- Lockable OFF position for secure system shutdown
Material Specifications :

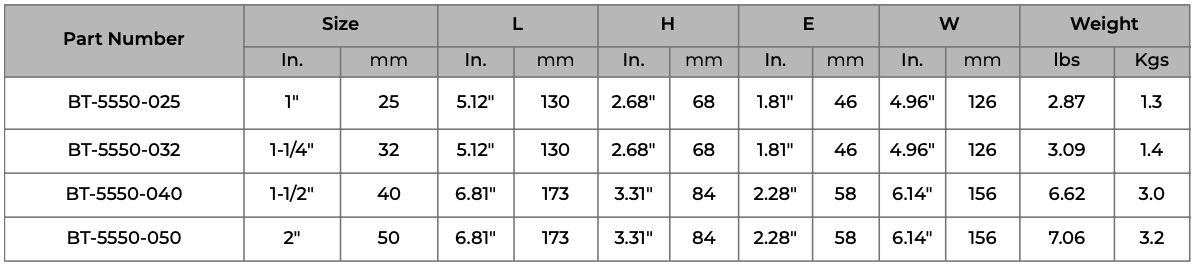

| Sizes | DN 25, DN32, DN40, DN 50 (1″, 1¼”, 1½”, 2″) |
| Maximum Working Pressure | 300 psi (20.7 bar) |
| Approvals | FM Approved / UL Listed |
| End Connection | Threaded, BSPT as Standard ( NPT Optional) |
| Body | High-strength Forged Brass for corrosion resistance. |
| Ball | Chrome-plated brass for smooth operation and durability. |
| Seats/Seals | PTFE (Teflon), ensuring a tight seal and low-friction turning. |
| K factors | ⅜” (K2.8), 7/16” (K4.2), ½” (K5.6), 17/32” (K8.0) |
| Stem | 304SS |
| Sight Glass | Polycarbonate |
| Indicator Plate / Handle | Steel |
