Swing Check Valve – Flanged
The BT 5301 Swing Check Valve is designed to prevent reverse flow in fire protection and water distribution systems. The valve operates automatically, allowing unrestricted forward flow while preventing backflow to protect pumps, pipelines and associated equipment. Its full waterway design minimises pressure loss, while the EPDM-encapsulated disc provides reliable sealing and long service life. The top-entry bonnet enables easy inspection and maintenance without removing the valve from the pipeline, reducing downtime and maintenance costs.
Description
-
EPDM Encapsulated Disc
-
An advanced design featuring exceptionally low pressure loss at high flow rates
-
The valve can be dismantled without removing it from the piping system by
-
unscrewing the bonnet bolts.
-

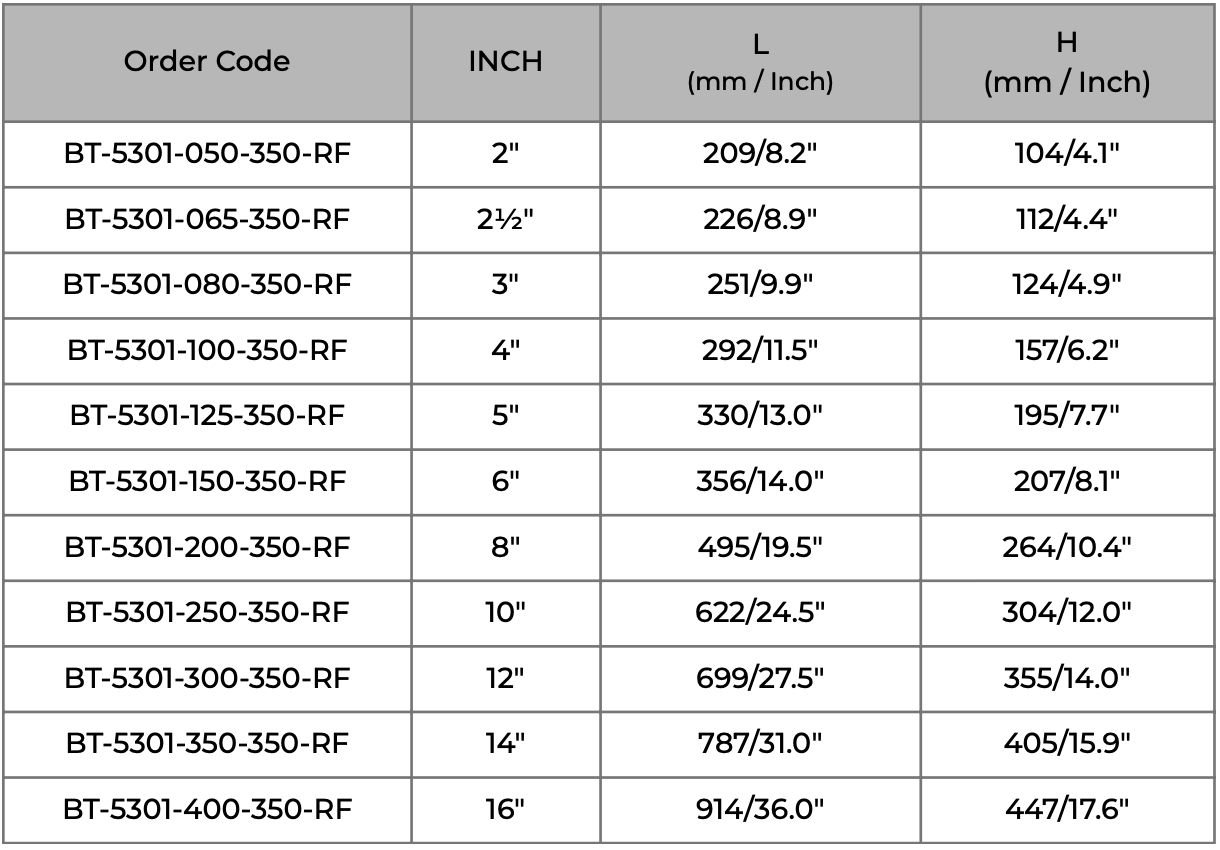

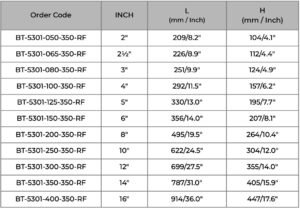

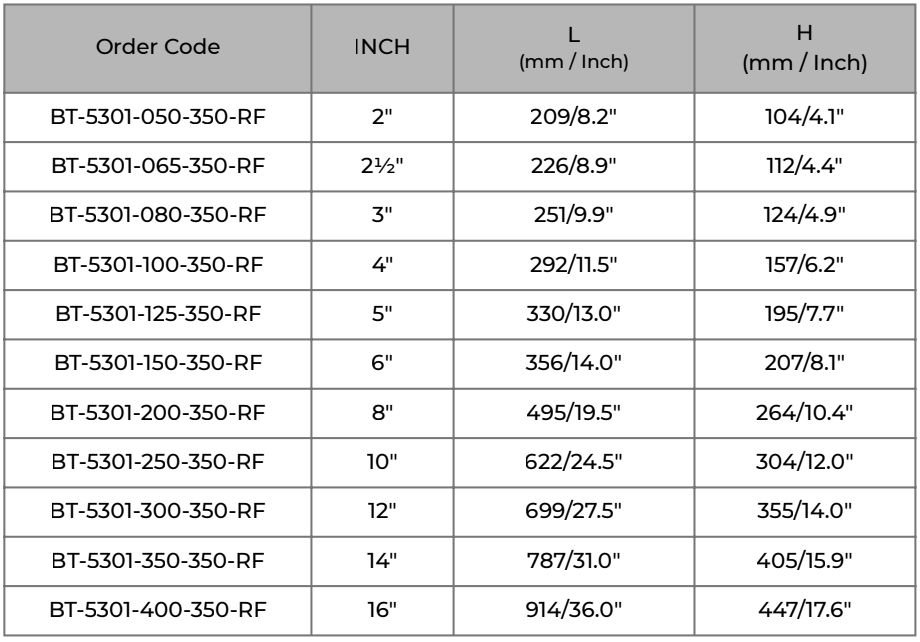

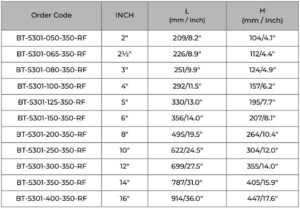

Face to face dimensions according to ASME B16.10.
